3/8" Electric Solenoid Valve 12-VDC, VITON Gasket, Air, Gas, Fuel Normally Closed
3/8" Electric Solenoid Valve 12-VDC, VITON Gasket, Air, Gas, Fuel Normally Closed
100% Satisfaction Guarantee
Amazing Value
Fast Shipping
Expert Customer Service
- -NEW- Re-engineered low power coil with up to 50% less heat generation. The valve starts as 19W and as it heat up to operating temperature power reduces to approx. 10-13W.

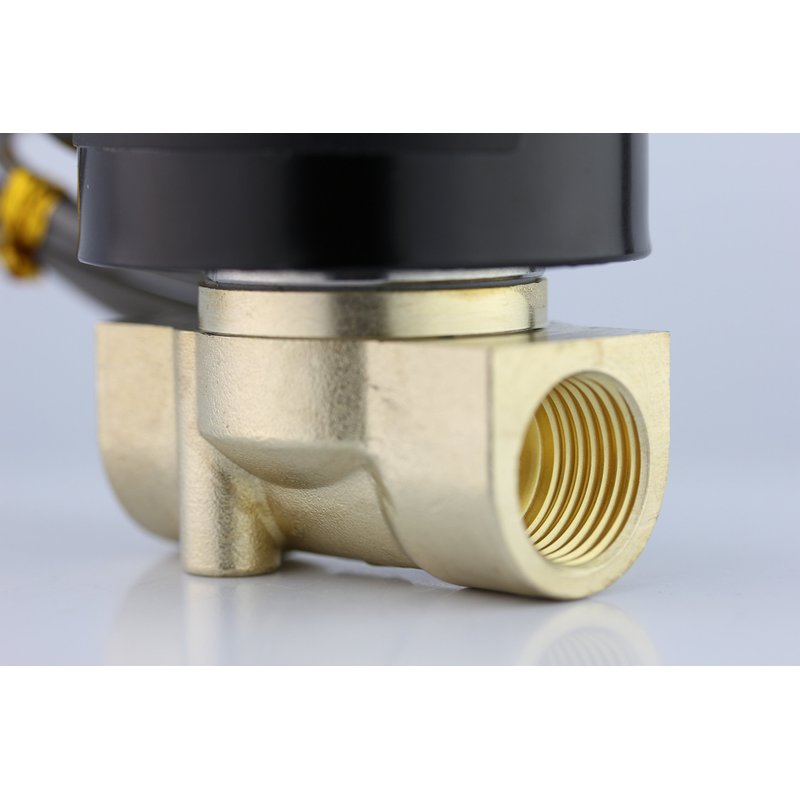

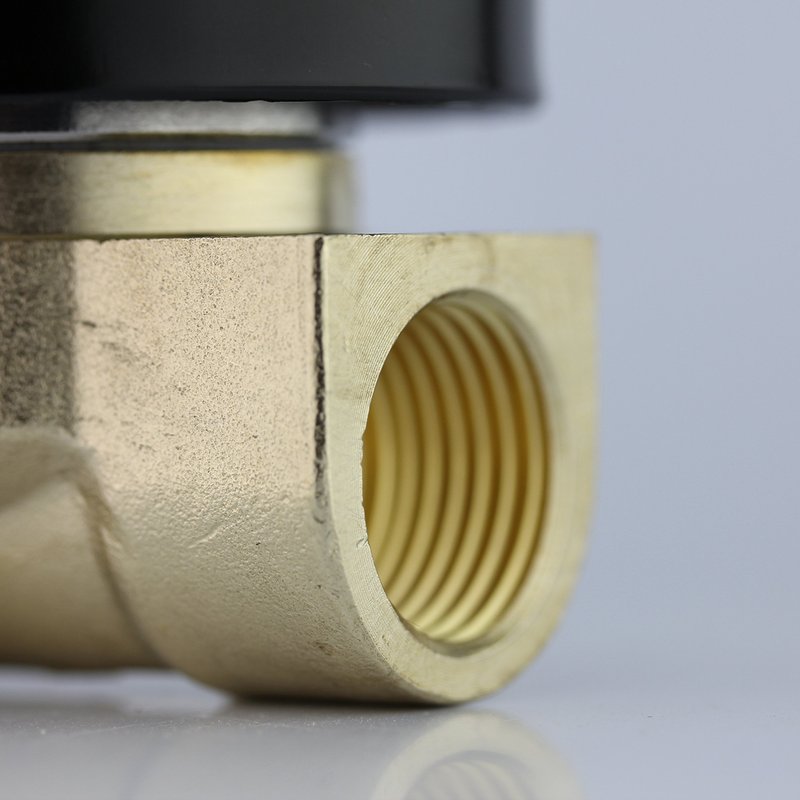

- Constructed of industrial grade brass, this valve is corrosion resistant, more conducive for welding, optimal for higher temperature projects, and can be used with gasoline, diesel fuel, kerosene oil, natural gas, air etc. Due to the chemical composition of brass, this valve should NOT be used with projects involving drinking water or other water projects.
- This valve was manufactured with a VITON seal. VITON is the most durable and high performance rubber material with the ability to resist high temperatures and corrosive chemicals and other fluids like gasoline, diesel fuel, oils, and lubricants.
- This highly responsive valve will open and close in less than 1 second when actuated; meaning it will open or close the flow instantaneously when energized or de-energized. Also, our U.S. SOLID engineers have determined that the life cycle of this valve is well over a million cycles with proper operating conditions and maintenance.
- PLEASE NOTE: This valve is NOT a continuous duty valve and should NOT be in continuous use for more than 8 hours in a single cycle; to do so will shorten the life of the valve and may cause the core of the valve to burn out. If you need a continuous duty valve for your project please search for our U.S. SOLID Motorized Ball Valves.
- Manufacturer: U.S. SOLID
- Model Number: USS2-00006
- Package Quantity: 1
- Part Number: USS2-00006
- Style: 1-PACK

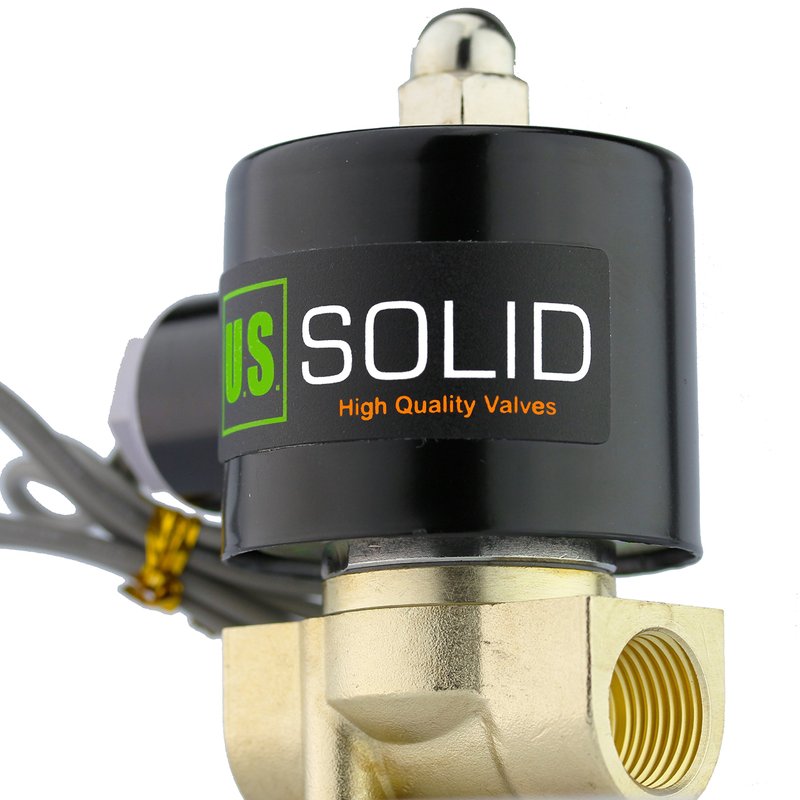

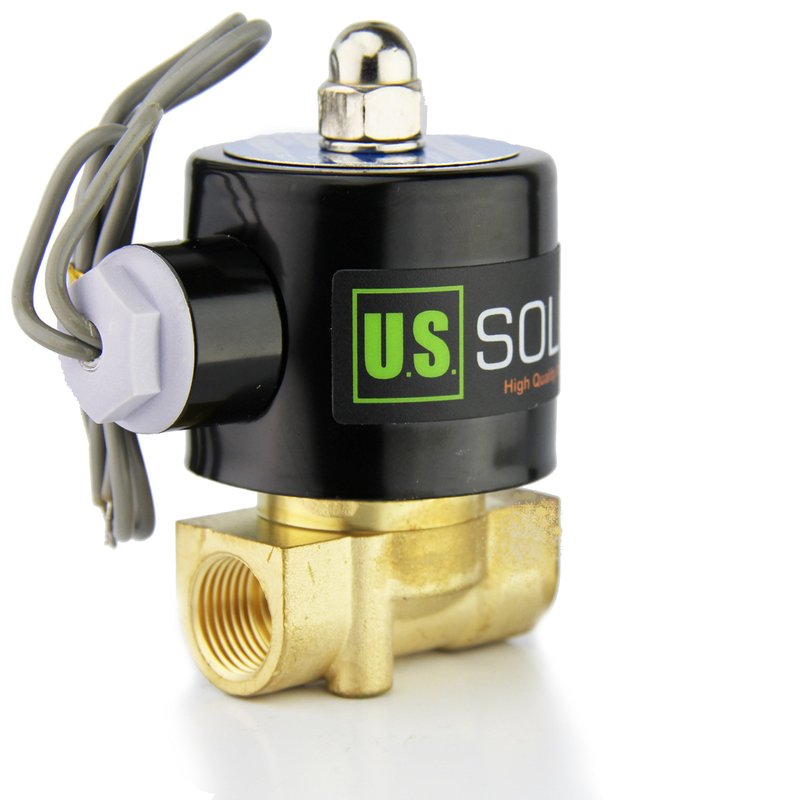

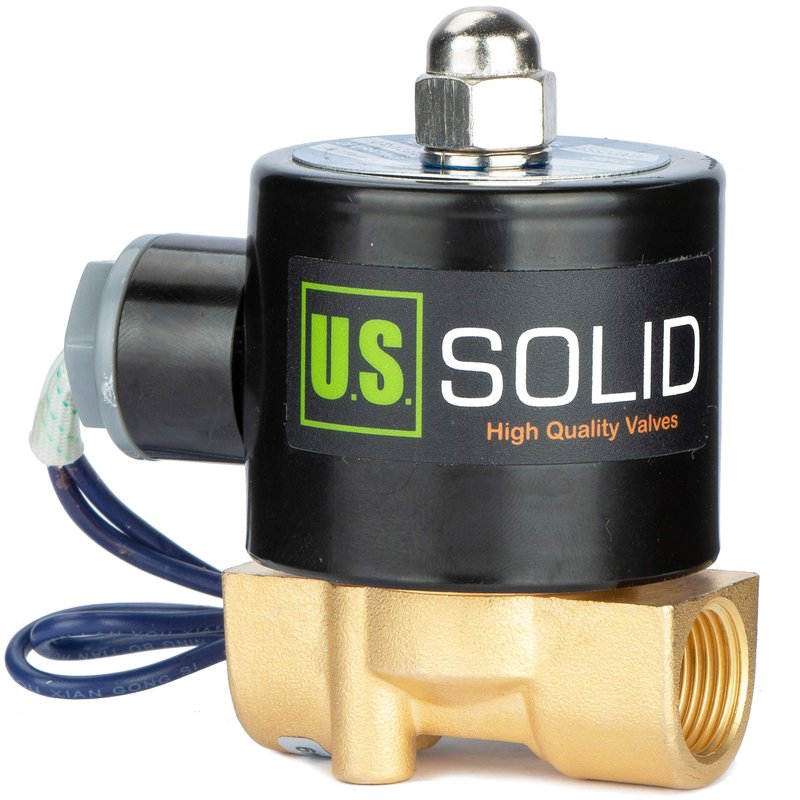

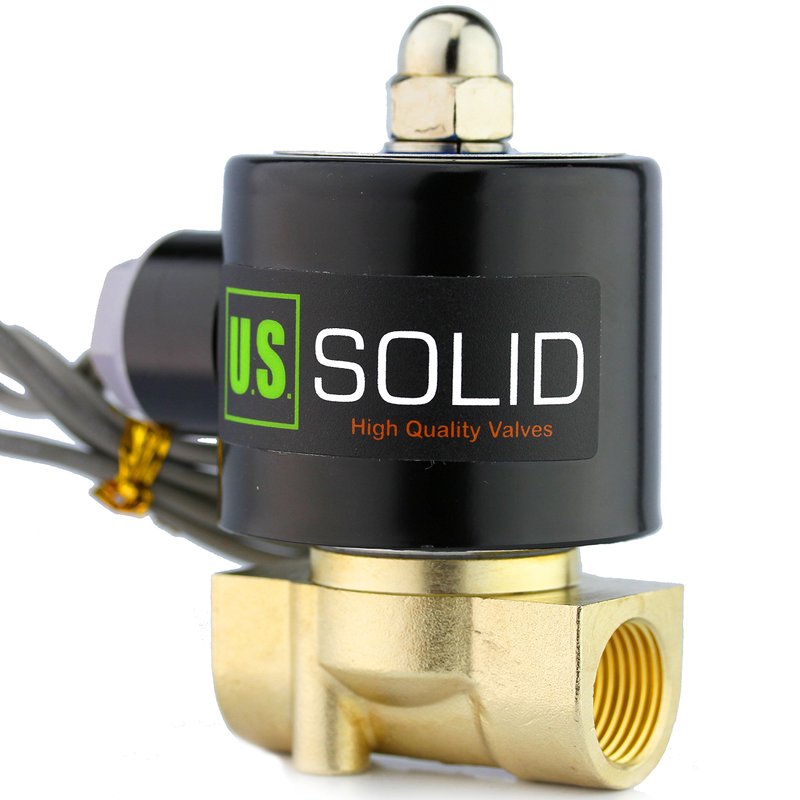

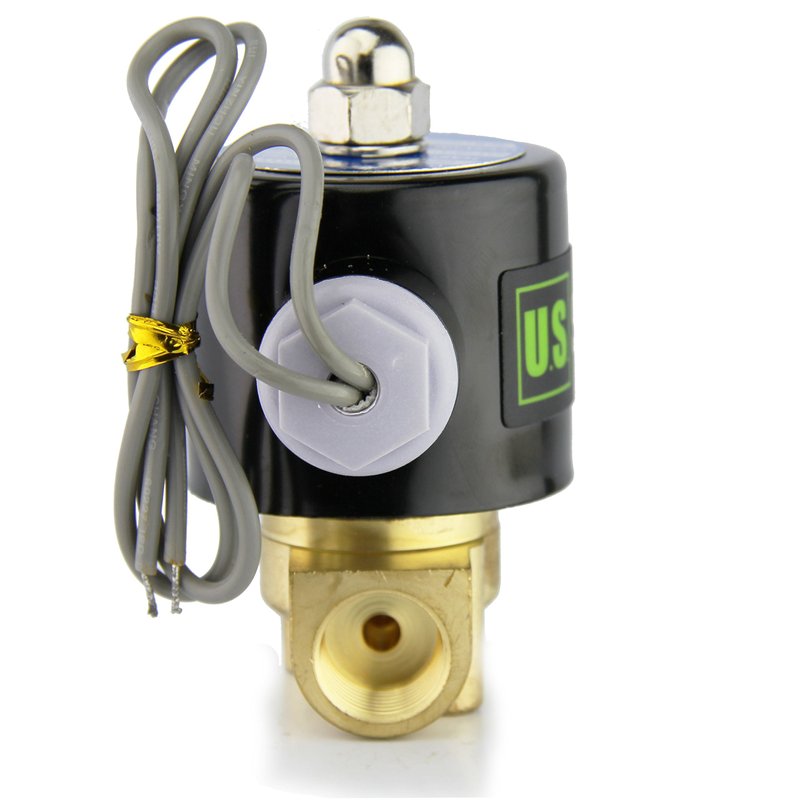

U. S. Solid Normally Closed Electric Solenoid Valve;
3/8”ports, brass body, Viton seal, 12 volt DC, for air, water, or fuel
U.S. Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, two-way inlet and outlet ports with three-eighth inch (3/8") female threaded (NPT) connections, and heat and oil resistant Viton gasket.
The direct current coil energizes at 12 volts DC;voltage range +- 10%. 20 Watt power rating.
Direct lift valve operates from 0 PSI to a maximum pressure of 145 PSI (0 MPa to 1.0 MPa). Operational pressure range for water: 0 to 128 PSI; for oil: 0 to 99 PSI; for air or gases: 0 to 128 PSI.
3/8" (4 mm) flow aperture permits a unidirectional flow capacity of 0.6 gallons per minute (GPM) of water at 60oF with a pressure drop of 1 PSI (0.6 Cv).
Operational temperature range is 14 to 248 degrees Fahrenheit; -10 to +120 degrees Celsius. Suitable for outdoor use; not for use underwater.
Suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel. Valve is not intended to be energized continuously for more than 8 hours. This can lead to burnout of the coil, and malfunctioning of the valve. In cases where this is necessary, it is recommended user install a computer fan to keep valve cool.
Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, harsh chemicals, flow control for irrigation systems, reverse osmosis system, electronic control of tank selection, water line, or motorcycle air shocks.
Manufactured in China. Model: USS2-00006. Quality assurance and/or conformity managed in accordance with standards:
ISO 9001:2000; GB/T 19001:2000; European EN61000-6-1:2001 and EN61000-6-3:2001.
