BTF-LIGHTING WS2812B 100PCS 5050SMD Individually Addressable Smart RGB LED Pixel for Arduino 5V DC Single 1-led LED Module Pixels Color Light little rgb LEDs Lampon Black Heat Sink PCB Board Only DC5V
- Individually Addressable.Dream full color Programmable LED Strip,WS2812B led, WS2812B IC Built in 5050SMD.256 brightness display and 24-bit color display.It comes with 3pin JST-SM connectors on both ends for easy installation and separated power/ground wires on both ends. Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
- The addressable IC is built-in the 5050SMD.Each pixel can have its own color and brightness as your wish. Compatible with T1000S,K1000C etc programmable controllers. Support SP110E SP105E SP108E SP110E SP601E etc APP controllers, CSY07 CSY08 X2 SP106E SP107E etc music controllers, SP501E etc smart WiFi Alexa Controllers.
- Only Support DC5V.Never use DC12V or DC24V power supply. Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.
- Making led screenDIY , advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Festivel Christmas or wedding party decoration,It has adhesive glue on the back, so you can stick it to the wall or other items conveniently as you like.
- It¡¯s put on a small PCB board that allows you to solder it in whatever configuration you want.
- Color: Rgb White Pcb
- Manufacturer: BTF-LIGHTING Technology Co., Limited
- Model Number: WS2812BLEDW-W100pcs
- Package Quantity: 1
- Part Number: WS2812BLEDW-W100pcs
- Size: 100 Count (Pack of 1)
- Style: Modern

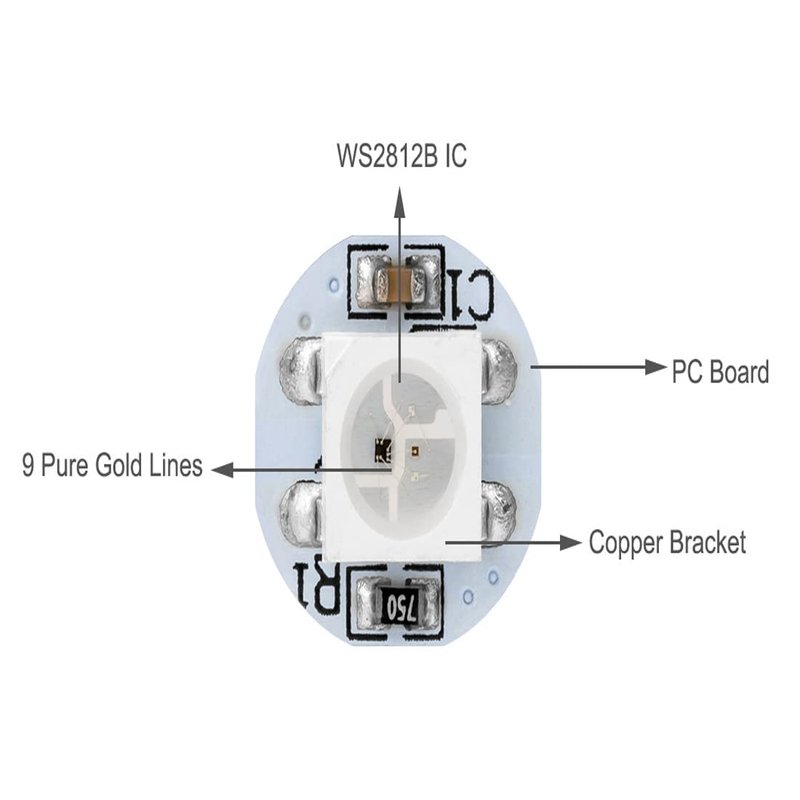

WS2812 is an intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components.
It includes intelligent digital port data latch and signal reshaping amplification drive circuit.
Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.
LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages.
The control chip integrated in LED above becoming more simple circuit, small volume, and convenient installation.
Please note this is a pack with 100 individual LEDs.
Features:
Integrating control circuit and RGB chip
Built-in signal reshaping circuit
Built-in electric rest circuit and power lost reset circuit 256
brightness and 16777216 color display
Cascading port transmission signal
Parameter
Model: WS2812 pixel board
light source: SMD 5050 RGB
plate: aluminum plate
IC Model: WS2812B
the gray level: 256
Beam angle: 120 °
Color: full color, can be adjusted by the controller as follows: white, red, yellow, blue, green, etc.
The standard operating voltage: DC 5V
Power: 0.3W ± 0.01%
Waterproof: not waterproof
FPCB board size: Width: 10 mm, thickness: 3mm
FPCB board color: white
Kindly note

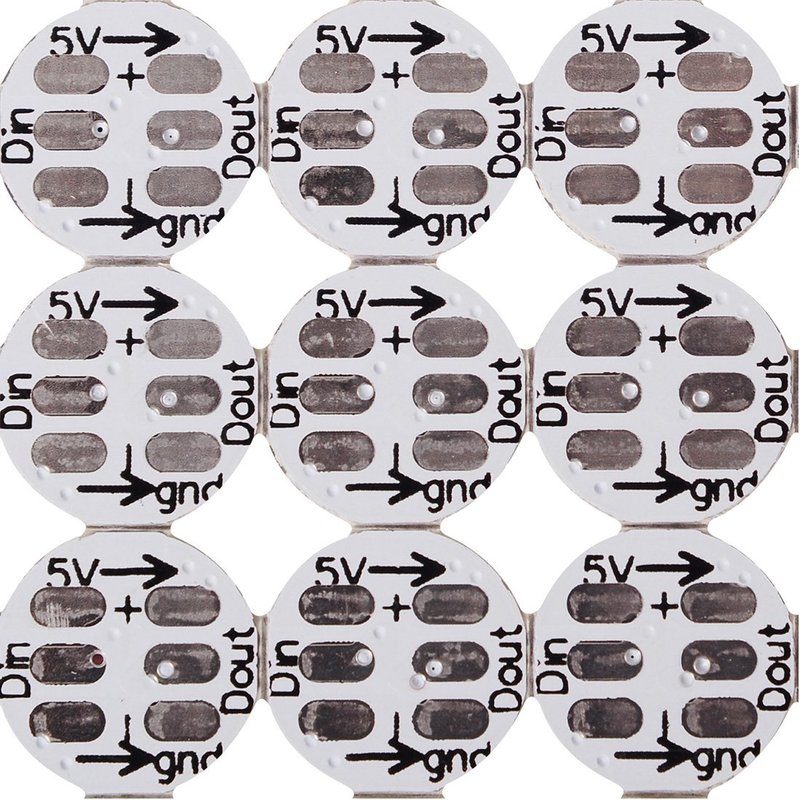

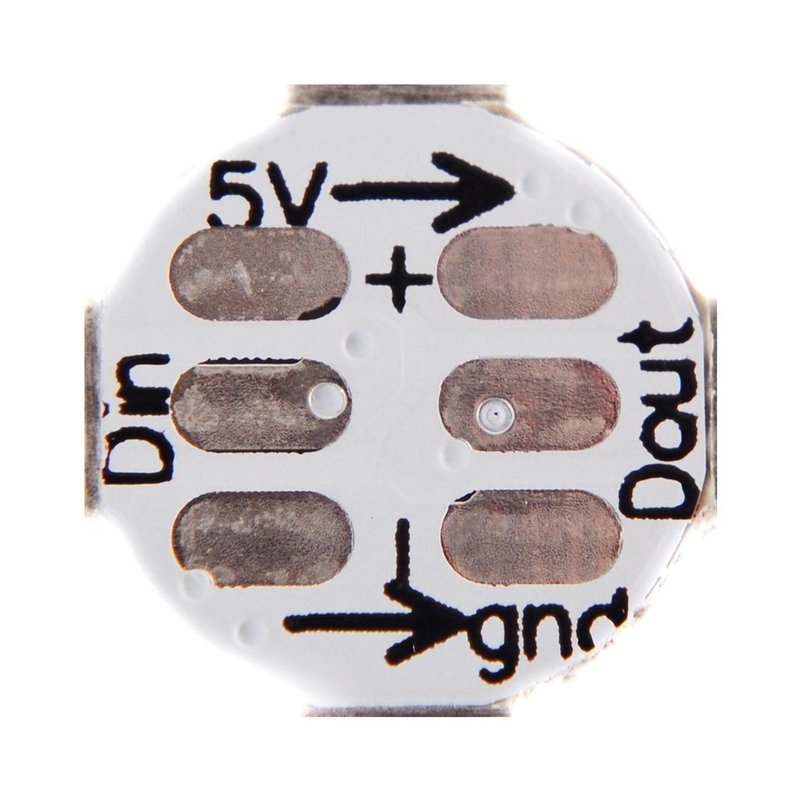

None of the LEDS are connected through the PCB. So you need to solder them based on your requirement. There are 6 solder points on the back of LEDs.
Arduino is not included.
Package:

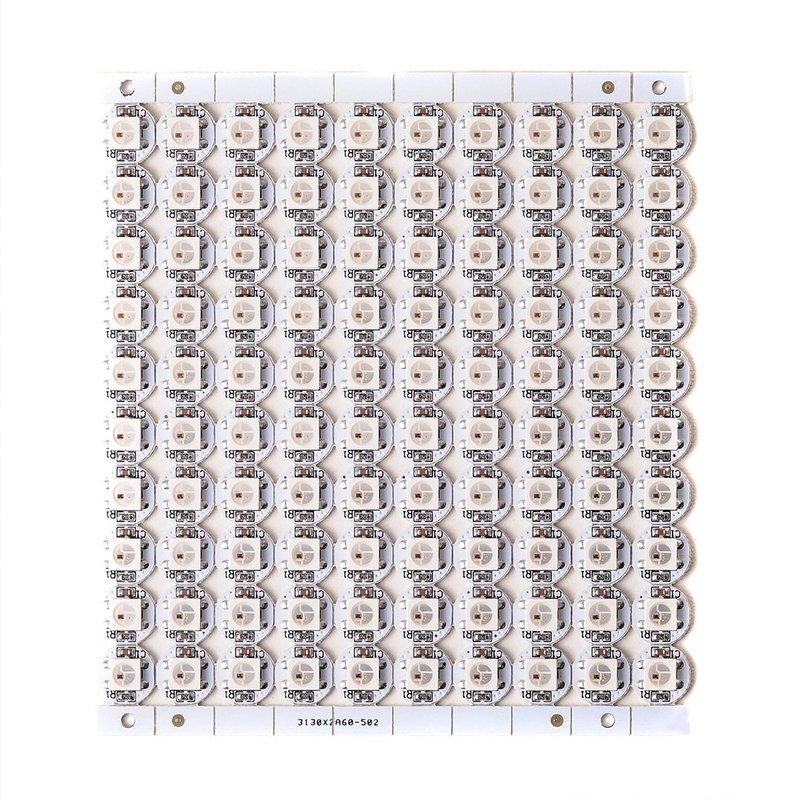

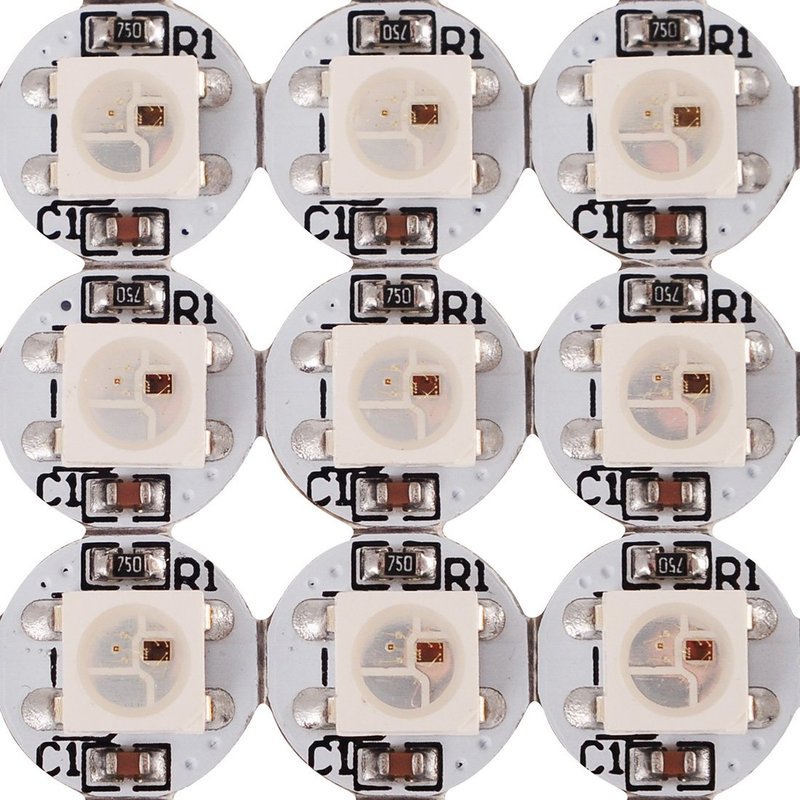

100pcs WS2812B LED mounted on white PCB Board
