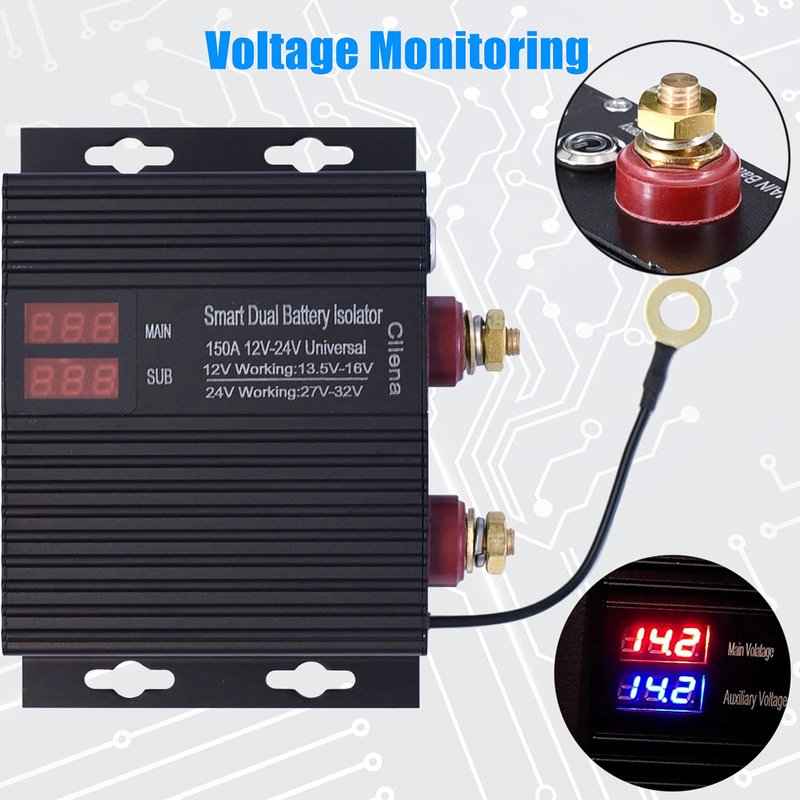

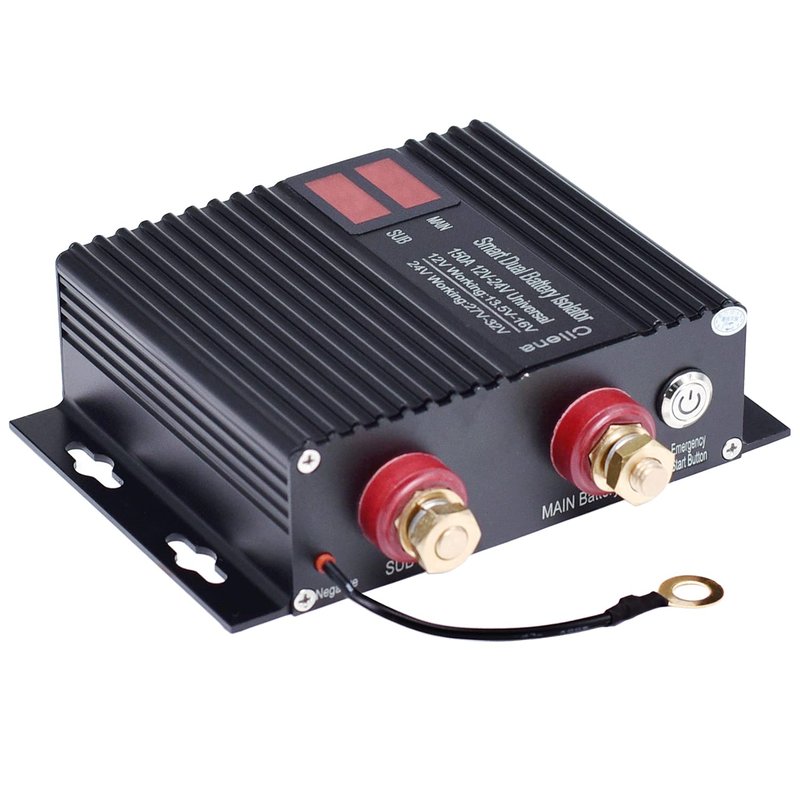

Cllena Dual Battery Smart Isolator, 12V/24V Universal 150 Amp Voltage Sensitive Relay - VSR for Car, RV, ATV, UTV, Camper, Truck, Boat, Off-Road Vehicles
- 【Flexible Design】- Current: 150 Amp; Voltage: 12V/24V (Universal Application), LED Display: Real time monitoring of tow batteries voltage. Emergency Button: If the engine cannot be started when original battery out of power, just pressing the Emergency Button to turn on the auxiliary battery to start the engine.
- 【Intelligent isolated Connection】- Automatically Connection Voltage (Delay 5 seconds) : 13.5V-16V(12V working voltage)/27V-32V(24V working voltage)/ Automatically Disconnect Voltage (Delay 5 seconds) : 12.5V; Over Voltage: 16V/32V.
- 【Double Assurance】- The 150 Amp Dual Battery Isolator is to ensure primary battery is always charged and ready to start vehicle. It's like having two separate power sources for each battery while only having one alternator.
- 【Wide Application】- Designed with small size, can fit anywhere. Wide use on a variety of vehicles--12V/24V Car, Jeep, Truck, RV, ATV, UTV, Boat, Van, Off-road Vehicle, Caravan, Camping Applications.

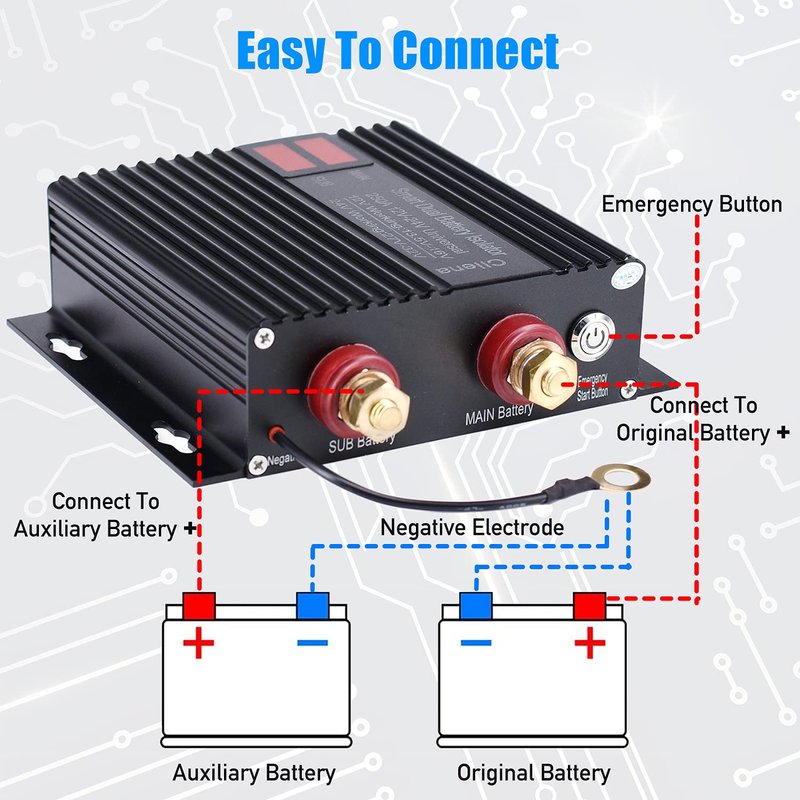

- 【Easy to install】- Just power wire in, power wire out. Pure copper connection poles, make the connection convenient. Four fixing holes, easy to install.
- Color: Dual Battery Isolator - 150A
- Manufacturer: Cllena
- Package Quantity: 1
- Part Number: 4088-150
- Size: 150A
Purposes:
- Some vehicles usually need to be equipped with a second battery to meet the demand for electrical appliances in the car. However, the second battery cannot be directly connected in parallel with the original car battery.
- The stalling use of electricity may cause the original car battery to lose power and it is difficult to start the vehicle. On the other hand, the line load is too heavy when the two batteries charging together. Therefore, a battery isolator is required.
- The battery isolator, also known as a split charge relay, uses your vehicle's power to charge an auxiliary battery and blocks your starting battery from getting drained by your equipment when the engine is turned off. The auxiliary battery isolator will only allow the extra battery to charge at whatever rate the alternator can manage.
Operating State:
- Detect the main battery firstly, read the voltage and identify the two system. The voltage reading below 16V is a 12V system, and the reading above 17V is a 24V systems.
- When the Voltage of the starting engine is higher than 13.5V(27V), powered on the isolator after 5 seconds.It is normal for the voltmeters to have an error between 0.3V.
- When the main and auxiliary voltmeters show that the voltage is lower than 13V(26V) for 10 minutes, disconnect the isolator immediately while it is lower than 12.5V(25V). The voltmeters is flashing after disconnection.
- The button indicator light flashes during the isolator is working, and the two voltmeters display normally.

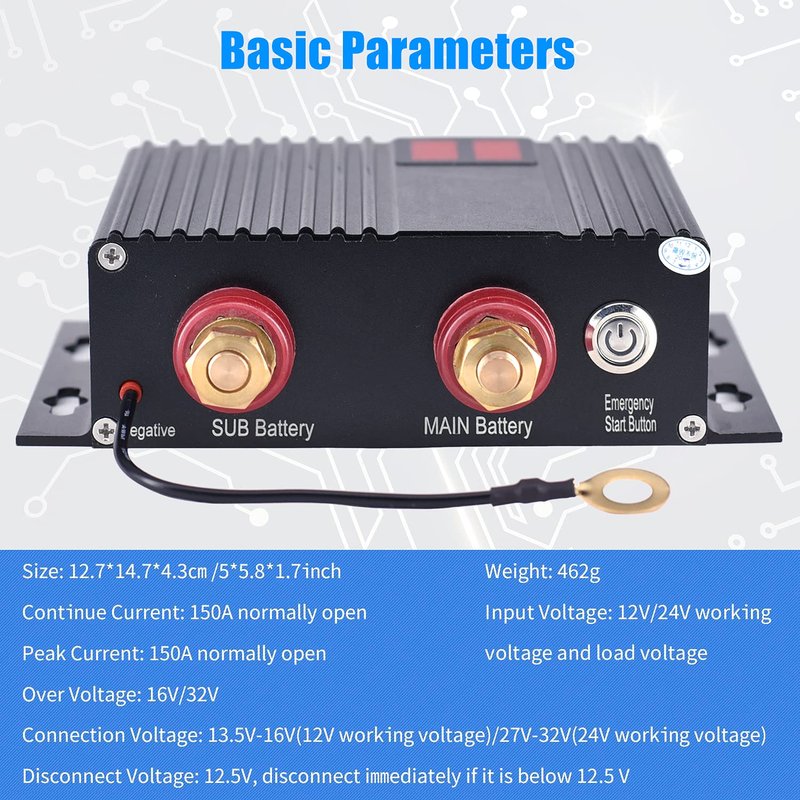

Specifications:
Input Voltage: 12V/24V
Continuous Current: 150A normally open
Peak Current: 150A normally open
Automatic Connection Voltage: 13.5V-16V (12V) / 27V-32V (24V)
Automatic Disconnection Voltage: 12.5V, immediately disconnect if below 12.5V
Over Voltage: 16V/32V
Weight: 517g

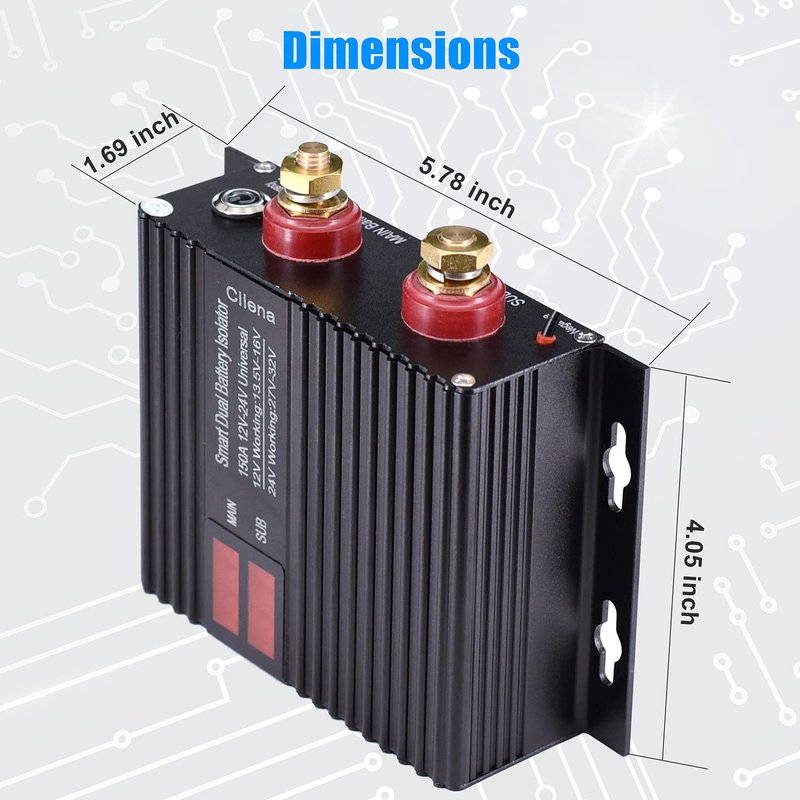

Size: 5.8*5*1.7(inch)
