DIYmalls 2.4" inch TFT LCD Display Module ILI - 9341 Resistive Touchscreen 5V/3.3V 8-bit Parallel Interface w/SD Card Slot for Arduino Mega-2560
- This 2.4 inch tft lcd shield is resistive touch, not capacitive touch.

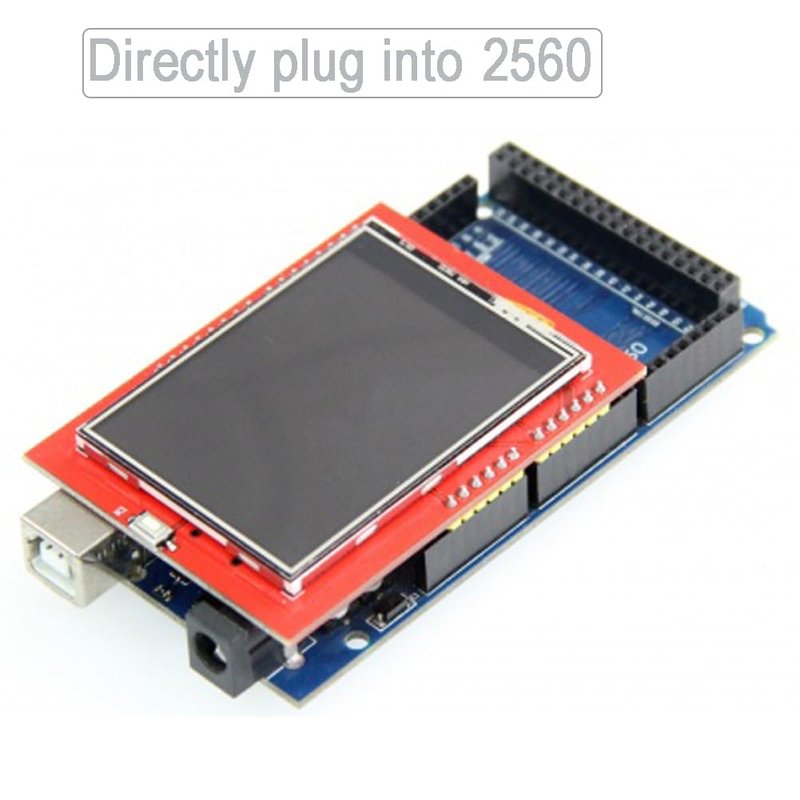

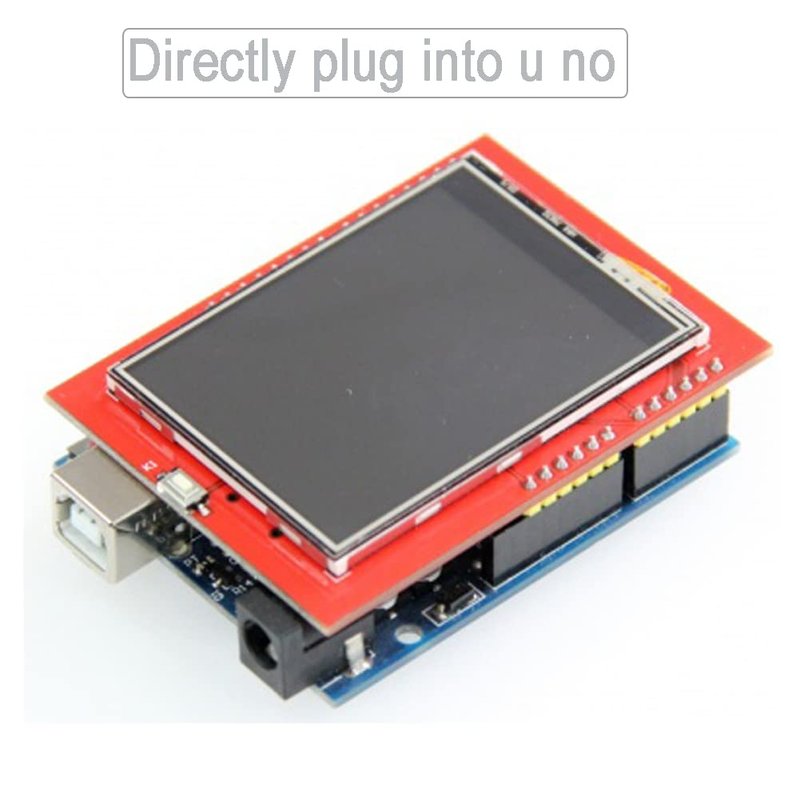

- The 2.4 inch display can be directly plug into u no and 2560.

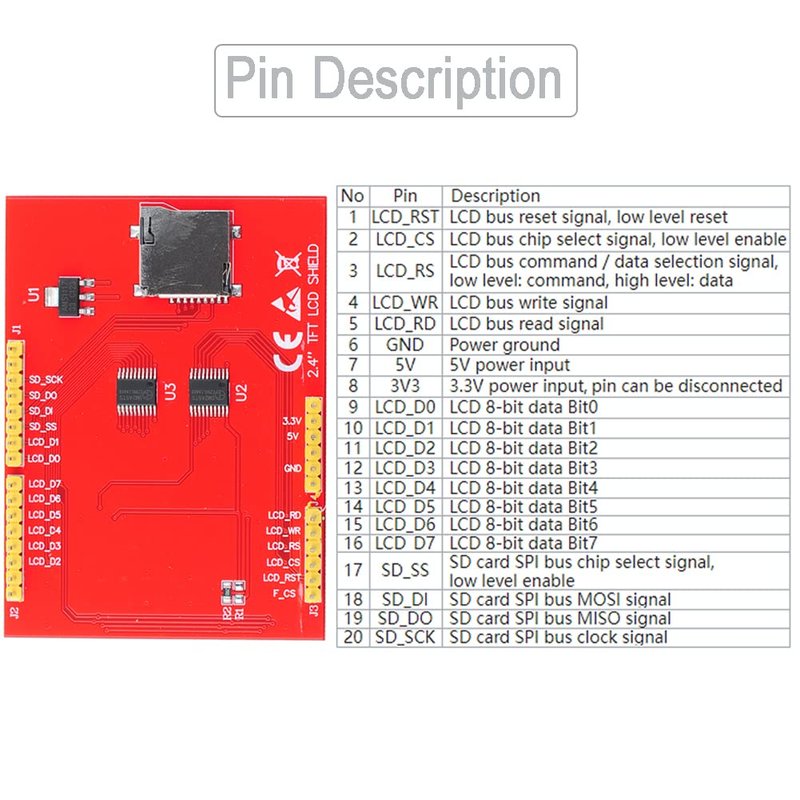

- Wiring with STC12 board: 5V-5V, 3V3-3V3, GND-GND, LCD_D0-P20, LCD_D1-P21, LCD_D2-P22, LCD_D3-P23, LCD_D4-P24, LCD_D5-P25, LCD_D6-P26, LCD_D7-P27, LCD_RST-P33, LCD_CS-P13, LCD_RS-P12, LCD_WR-P11, LCD_RD-P10, no need to connect SD_SS, SD_DI, SD_DO, SD_SCK.

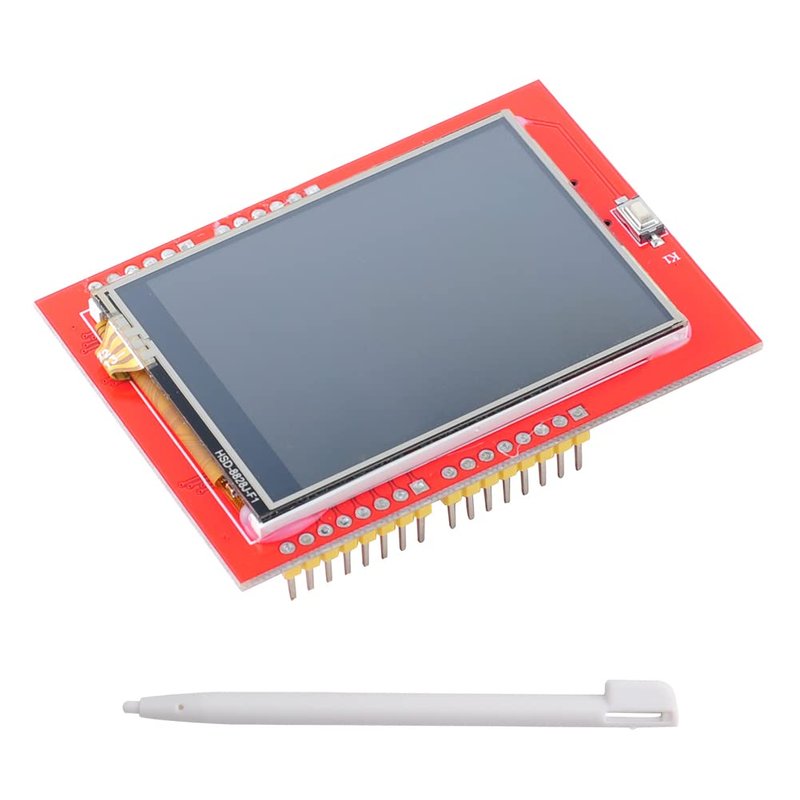

- You will receive 1pcs 2.4 inch tft lcd display with touch pen, other accessories excluded.
- You can find more lcd display via "Visit the DIYmalls Store"
- Manufacturer: DIYmalls
- Package Quantity: 1
- Part Number: DM1489
Description:
Supports plug-in for Arduino U NO Mega-2560
320X240 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Specification
Display Color: RGB 65K color
Screen Size: 2.4(inch)
Type: TFT
Driver IC: ILI9341
Resolution: 320*240 (Pixel)
Module Interface: 8-bit parallel interface
Operating Voltage: 5V/3.3V
Power Consumption: TBD
Active Area: 48.96*36.72(mm)

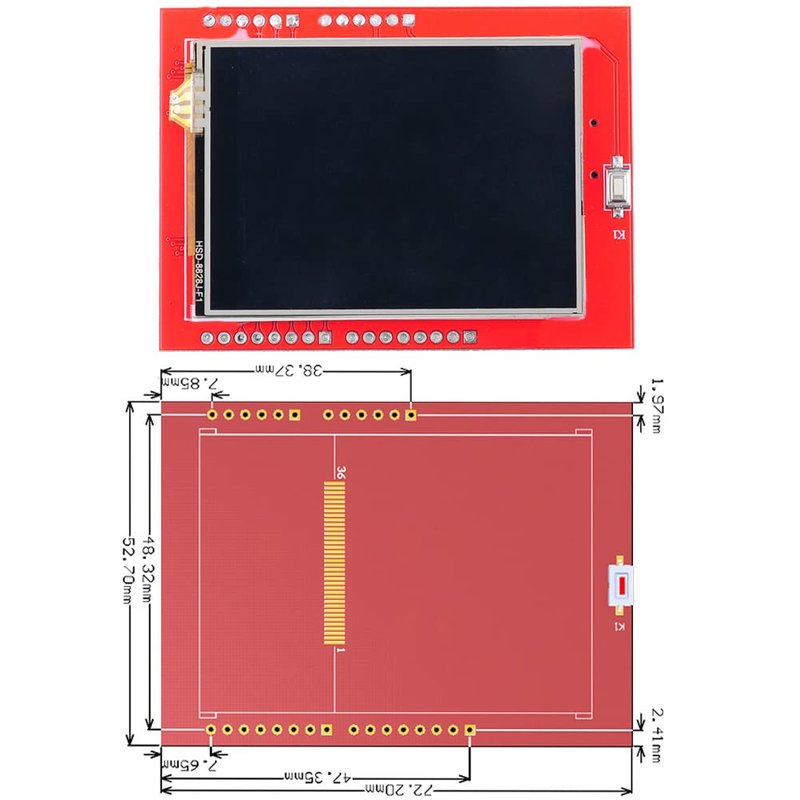

Module PCB Size: 72.20*52.7(mm)
Operating Temperature: -20℃~60℃
Package Included:
