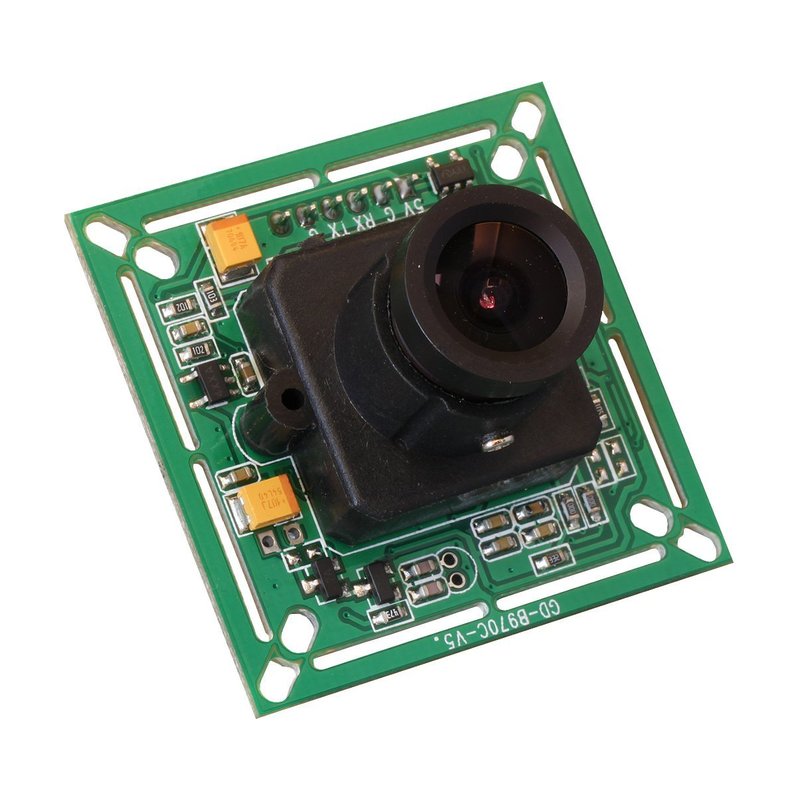

Electronics123.com, Inc. C429-L28 JPEG Compression VGA Camera Module with IR-Cut Filter Mounted on Sensor & 2.8mm Lens

£32.50 In Stock
Ships from US, Arrives in 10-17 business days
Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
26
May2025
-
04
June2025
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
Electronics123.com, Inc. C429-L28 JPEG Compression VGA Camera Module with IR-Cut Filter Mounted on Sensor & 2.8mm Lens

Electronics123.com, Inc. C429-L28 JPEG Compress...

£32.50

Product Details
  • The C429 JPEG compression module performs as a video camera or a JPEG compressed still camera. Users can send a snapshot command from the host in order to capture a full resolution, single-frame still picture (MT9v011+VC706sensor).
  • The picture is then compressed by the JPEG engine (VC0706) and transferred to the host. A schematic to build your own EV kit and software for the camera is also included.
  • (This is another replacement for the C328 cameras even though the command-set is not identical to that used in them.)
  • INCLUDES built-in IR-CUT FILTER mounted on sensor, 2.8mm LENS, & 6 pin cable w/connector.
  • Skill Level : Assembled and Tested

  • Manufacturer: Sicube Photonics Co., Ltd
  • Part Number: B970C-L28
  • Size: Small

Features:
Small size 32 x 32mm
Adjustable resolution, Max VGA
5V operation
Low Power consumption 80mA
UART interface up to 921.6Kbps
Built-in IR-CUT filter - for day & night (The filters have a lightpass at about 850nm and are designed to work with IR LEDs emitting at 850nm.)
Multiple lens options available
Includes 2.8mm lens (L28) specs:
Focal length: 2.8mm
Aperture (D/f'): 1/2.0
Horizontal field: 95 degrees
M.O.D. (m): 0.2
Format: 1/3"
Mount: M12 x 0.5
Dim (D x L mm): φ14 x 16.8
Weight: 4.0g
Key Features:
CMOS sensor or CCIR656 video input
CCIRT656 digital video output
Supports UART interface to connect various host controller easily
Supports VGA M-JPEG video output with the frame rates up to 30 fps
Smart noise forecast and reduction
Motion detection and alarm trig
Various image processing modes
Download documentation here:
http://www.electronics123.net/amazon/datasheet/c429data.pdf
http://www.electronics123.net/amazon/datasheet/VC0706.pdf
http://www.electronics123.net/amazon/datasheet/c429usermanual.pdf
http://www.electronics123.net/amazon/datasheet/c429lensoptions.pdf
http://www.electronics123.net/amazon/datasheet/MT9V011.pdf
http://www.electronics123.net/amazon/software/VC0706CommTool%28EN%29%20Setup%20V1-00.exe
