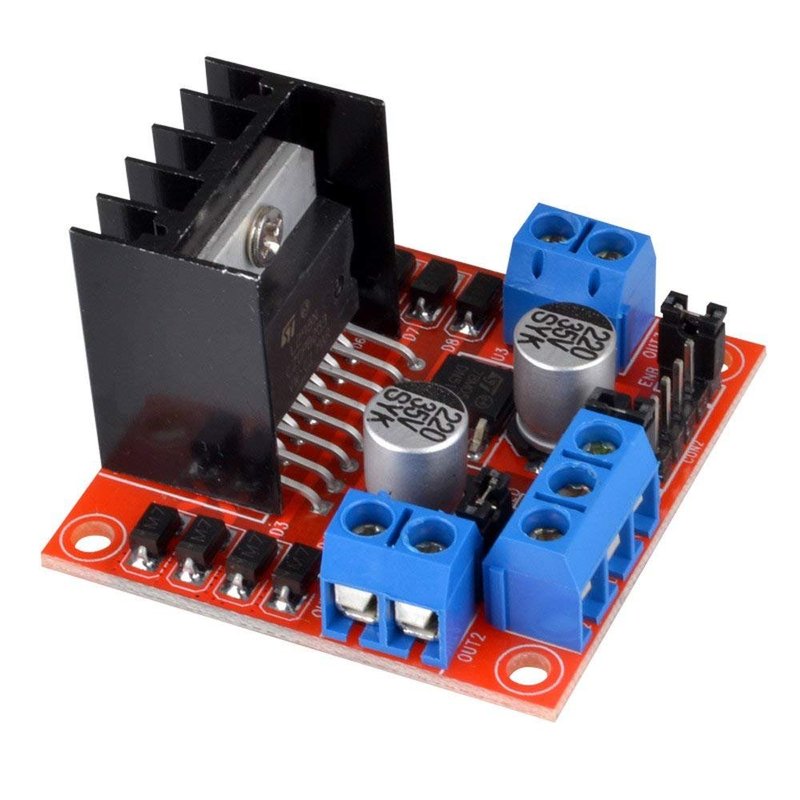

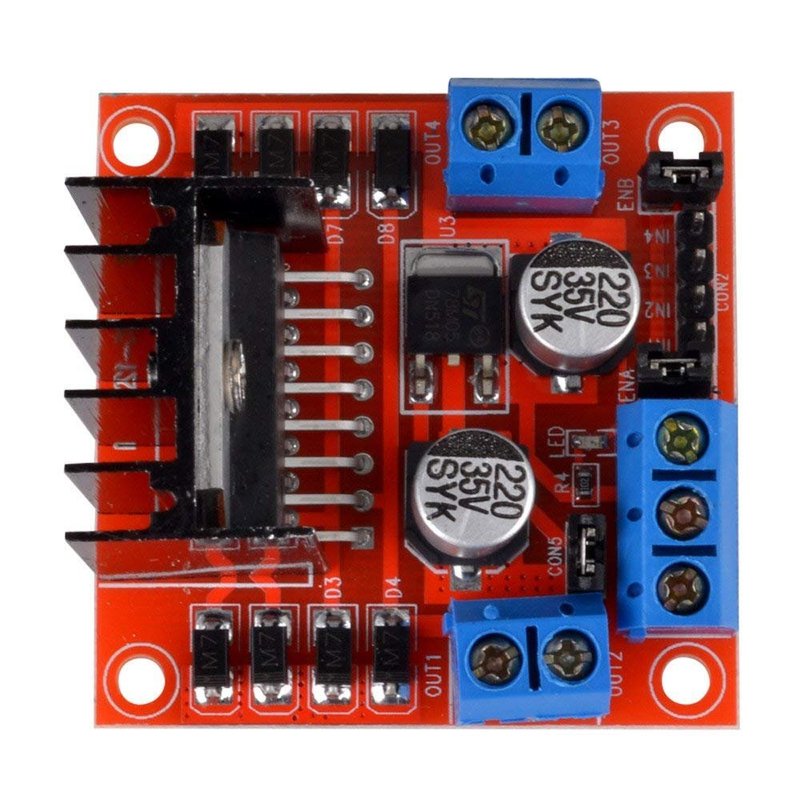

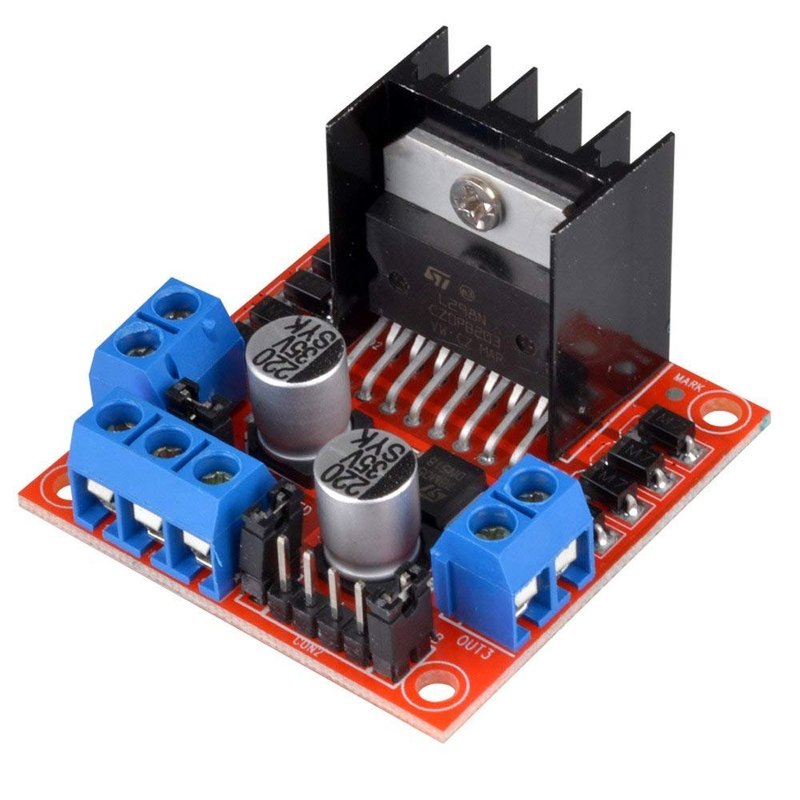

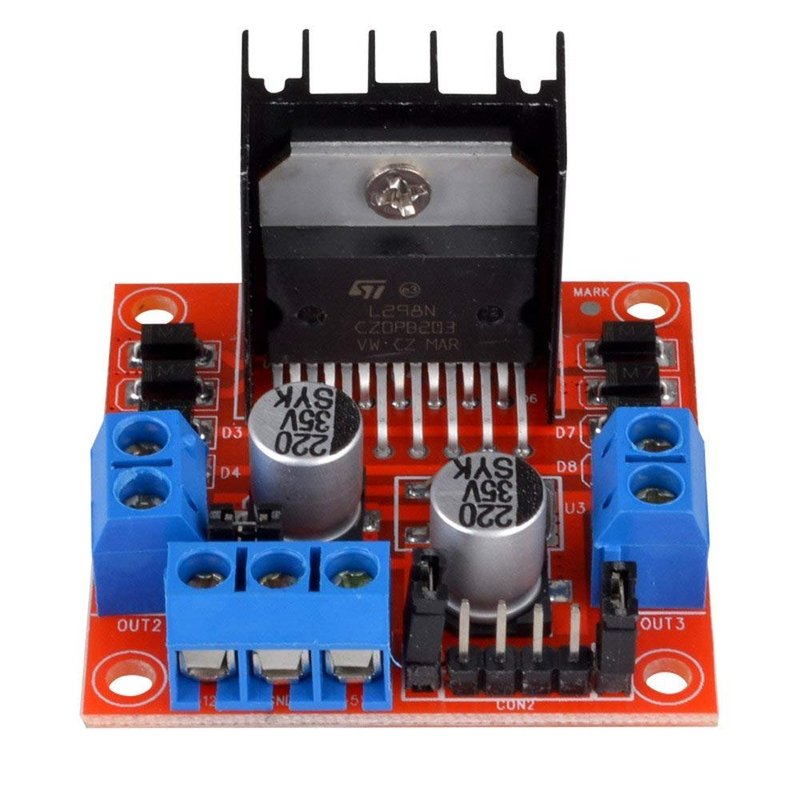

HiLetgo 4pcs L298N Motor Driver Controller Board Module Stepper Motor DC Dual H-Bridge for Arduino Smart Car Power UNO MEGA R3 Mega2560

Brand: HiLetgo Sold By: Everymarket
£20.89 In Stock
Ships from US, Arrives in 10-17 business days
Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
26
May2025
-
04
June2025
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
HiLetgo 4pcs L298N Motor Driver Controller Board Module Stepper Motor DC Dual H-Bridge for Arduino Smart Car Power UNO MEGA R3 Mega2560

HiLetgo 4pcs L298N Motor Driver Controller Boar...

£20.89

Product Details
  • L298N as main driver chip makes strong driving ability/small heating/strong anti-interference/low calorific value
  • Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability
  • Dual-channel H-bridge driver working mode creates higher working efficiency
  • To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage
  • Large capacity filter capacitance, afterflow protection diode, more stable and reliable

  • Color: Red
  • Manufacturer: HiLetgo®
  • Model Number: 3-01-0032-4PCS
  • Part Number: 3-01-0032-4PCS
  • Size: 4pcs

Specification:
Chip: ST L298N dual H-bridge driver chip
Logic voltage: 5V
Logic current 0mA-36mA
Storage Temperature: -20 ¡æ to +135 ¡æ
Operating mode: H-bridge driver (dual)
Drive voltage: 5V-35V
Drive current: 2A (MAX single bridge)
Maximum power: 25W
Driver Board Size:55mm*60mm*30mm
Driver Board Weight:33g
Dimensions: 43x43x27mm

Note:

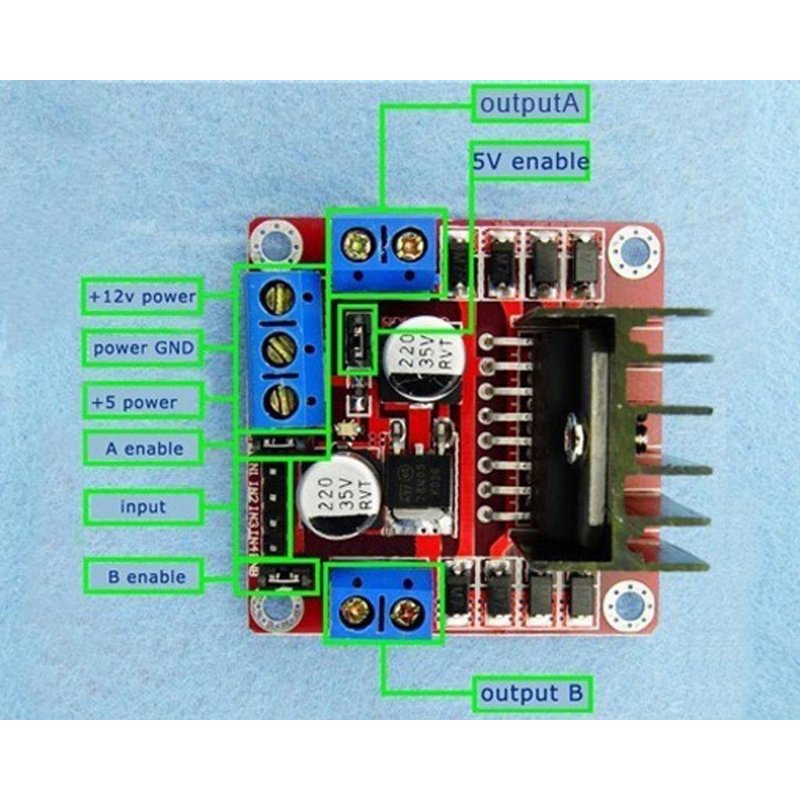

.General Application: When your driver is 7V-12V, you can enable the on-board 5V logic supply. When using the on-board 5V power supply, the + 5V power supply in the interface does not input voltage, but it can draw 5V voltage for external use.
.Unconventional application of high-voltage drive: When the driving voltage is higher than 12V, less than or equal to 24V, for example, to drive a motor with rated voltage of 18V, the jumper cap with 5V output enabled on-board voltage must be pulled out and then outside the 5V output port Connect 5V voltage to L298N internal logic voltage supply.

Package Included:
4* L298N Motor Driver controller Board Module
