HUAREW Max 300A Continuous Duty Solenoid Relay 4-Terminal Nickel-Plating 12VDC for Golf Carts, Winch, Marine SPST 12 Volt

Brand: HUAREW Sold By: Everymarket
£23.60 In Stock
Ships from US, Arrives in 10-17 business days
Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
28
May2025
-
06
June2025
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
HUAREW Max 300A Continuous Duty Solenoid Relay 4-Terminal Nickel-Plating 12VDC for Golf Carts, Winch, Marine SPST 12 Volt

HUAREW Max 300A Continuous Duty Solenoid Relay ...

£23.60

Product Details

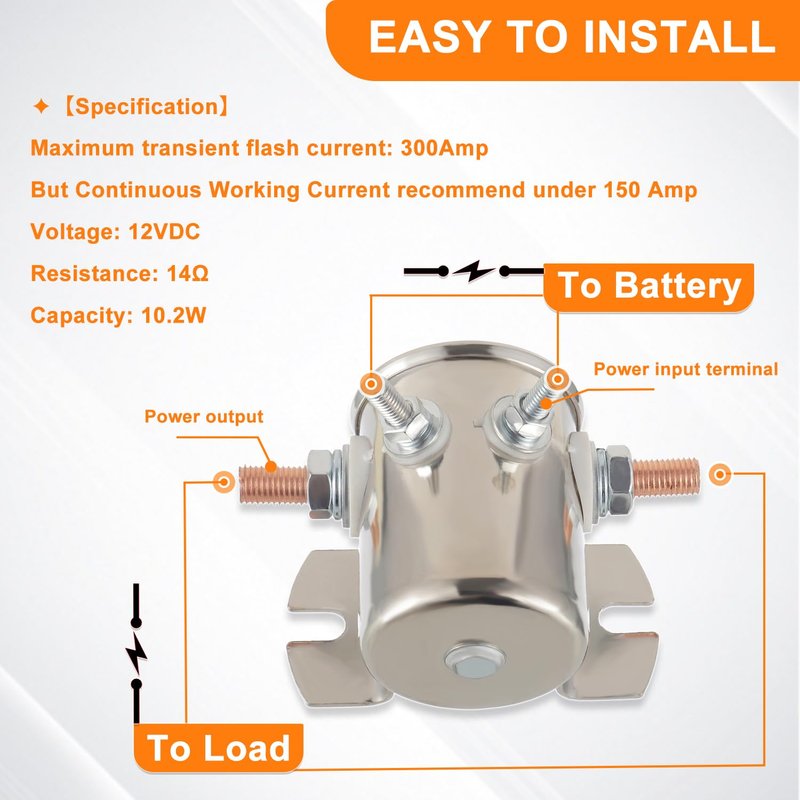

  • 【Specifications】 Voltage: 12VDC; Resistance: 14Ω; Capacity: 10.2W;
  • 【Material】The The electromagnetic relay adopts high-quality components, Coil Roll is using 180℃ copper wire, Cover is Nickel-Plating, and Avoid Rusting, Shining, Meet Environmental Plating Requirment.

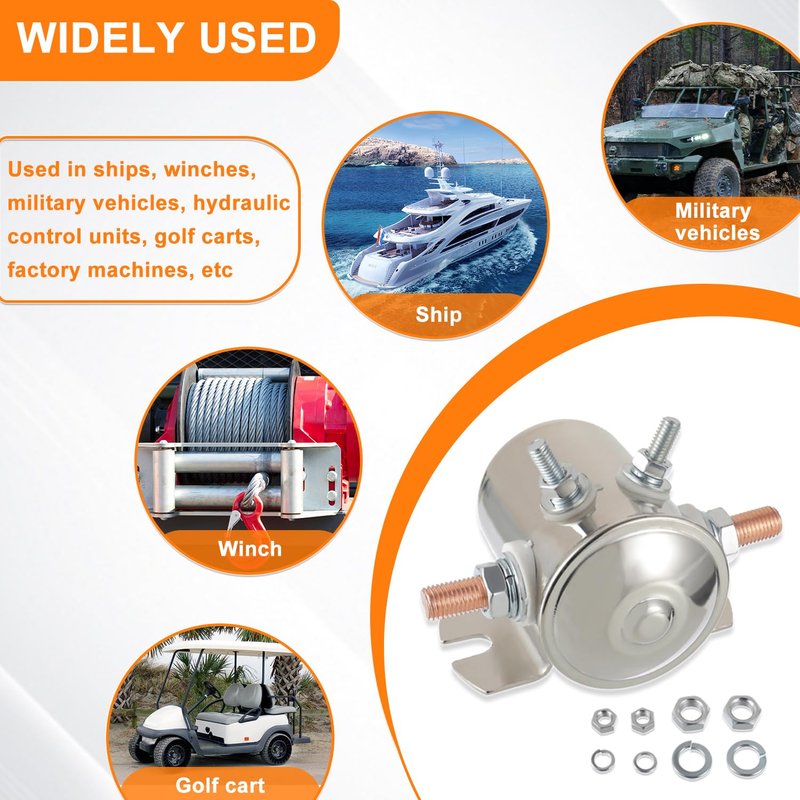

  • 【Application】This Continuous Duty Solenoid Relay Replacement For 70-111224, 3635820, 1114208, 1114218, 1114223, 1114534, 1114547; DELCO 1114208,1114218; JOHNSON ELECTRIC 5117340; MOTORCRAFT SWX88. PRESTOLITE 15-88, SWX-88, 15-132, SAS4202, 15-108; YALE 502265300,15-132, 15-133, 15-236, 15-311, 15-316, 15-88, Trombetta 974-1215-011-09, 974-1215-011, 98226-9, EZGO 16542G1
  • 【Function】Max Transient current can be 300A, but Continuous Working Current recommend under 150 Amp. Copper Terminal Contactor Improve Electricity - Reduce The Power Loss,Reach Transient Current 300A
  • 【Note】Need Break 5 sec on, 50 min off If u need work on high Amp, Or it will burned , Usually with 80Amp as working current

  • Manufacturer: HUAREW
  • Model Number: HR-CDS-12V
  • Part Number: HR-CDS-12V

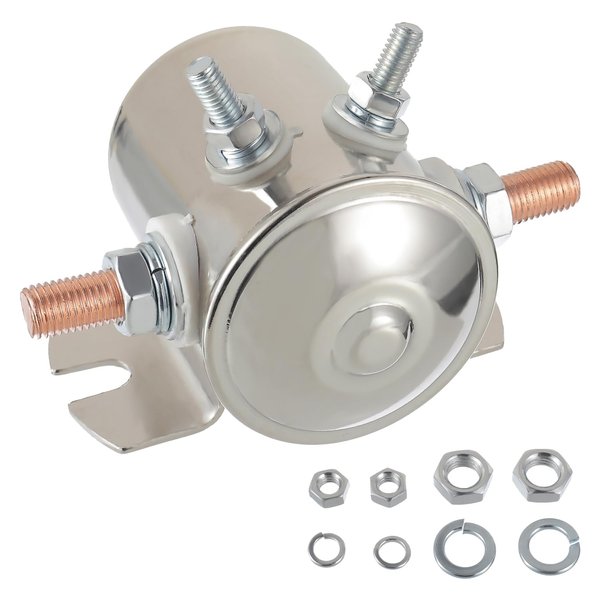

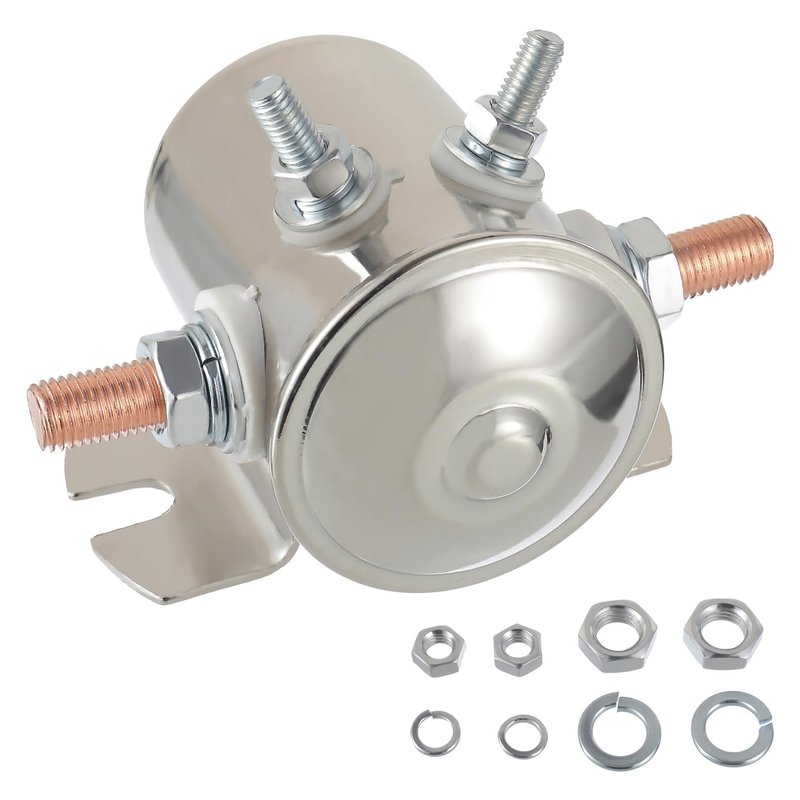

HUAREW Max 300A Continuous Duty Solenoid Relay

Parameter
Circuitry:Single Pole Single Throw (SPST) , One circuit: Off - On
Housing: Plated steel
Contact Studs:Copper 5/16-Inch -24 thread, hex nuts and lock washers included
Coil, ignition and ground terminals: Steel 10-32 thread, hex nuts and lock washers included

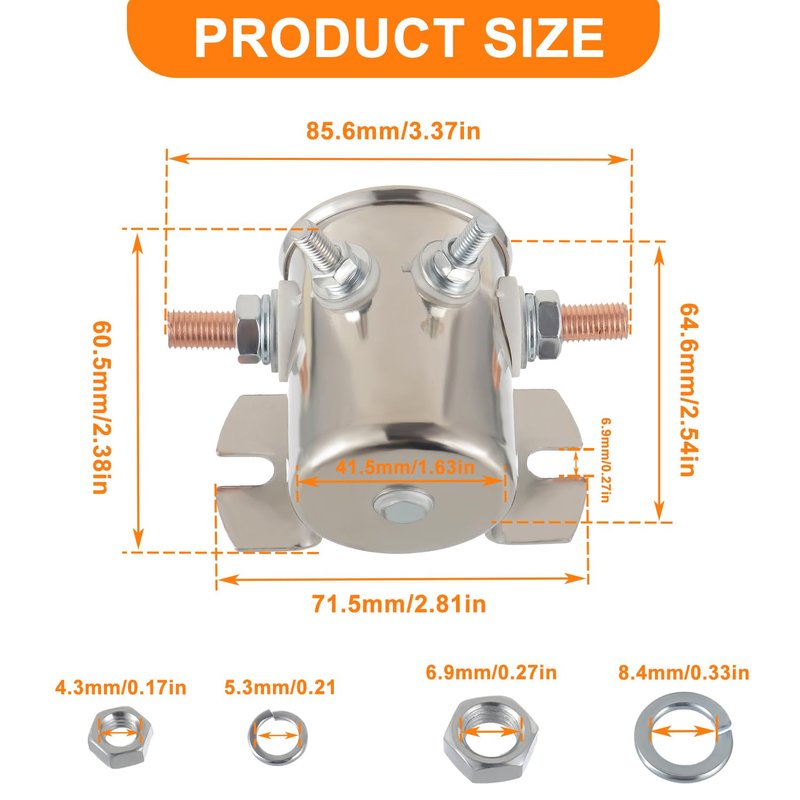

Bracket mounting:Holes 5/16 x 19/32 2-13/64 on Center

High-Performance

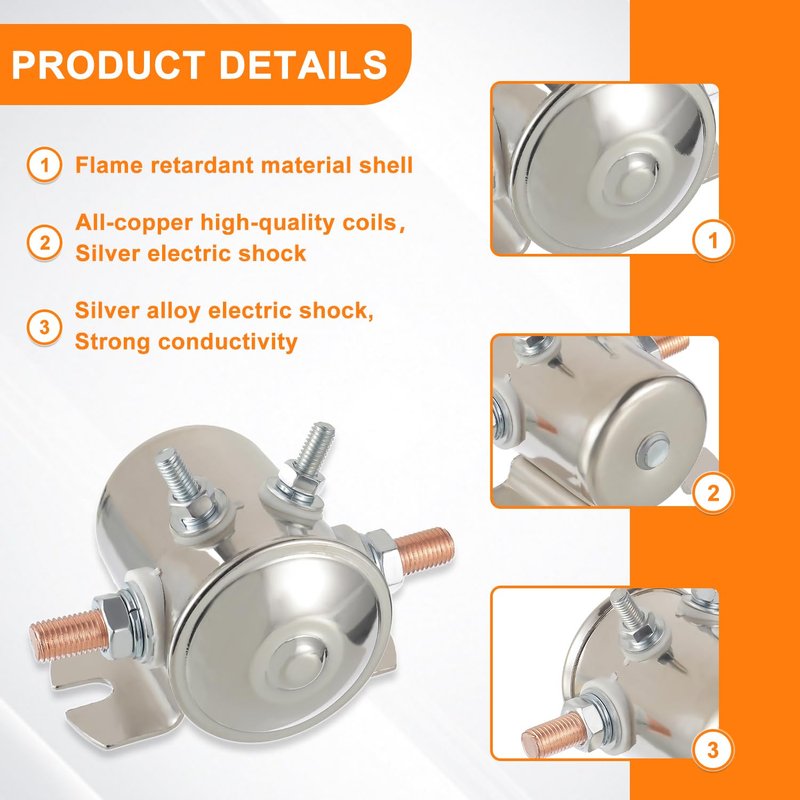

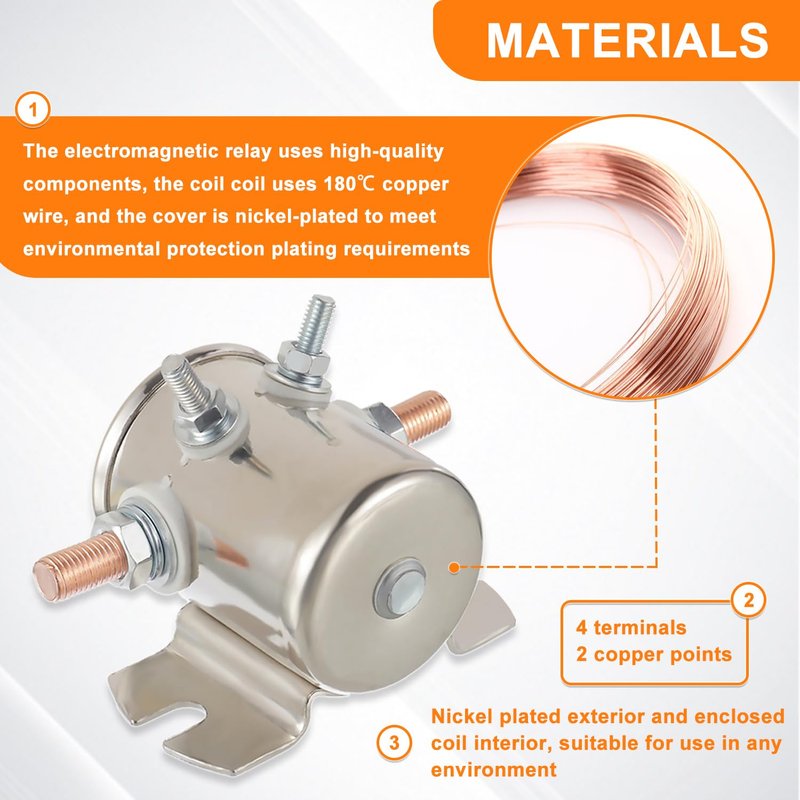

Coil Roll is using 180℃ copper wire, Cover is Nickel-Plating
Max Transient current can be 300A, but Continuous Working Current recommend under 150 Amp

good design
Water-Resistant: Nickel-plating outer and potted coillnteriors prctece your solenoid against any harsh enivironment

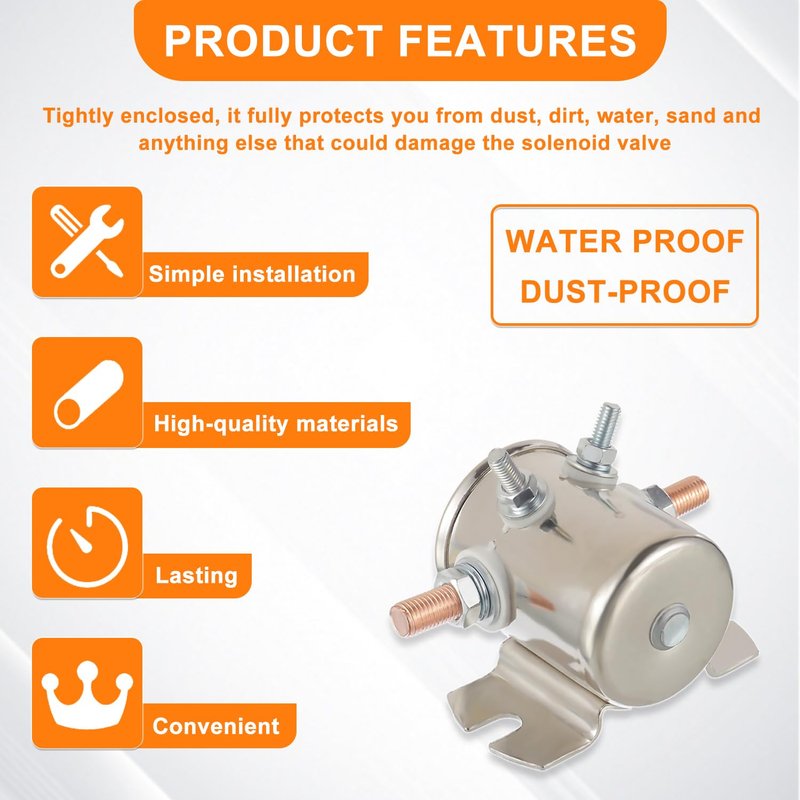

Dustproof: Firmly enclosed for owerall protection from dust, dirt, sand and ary other substance that could cause damage to your solenoid
