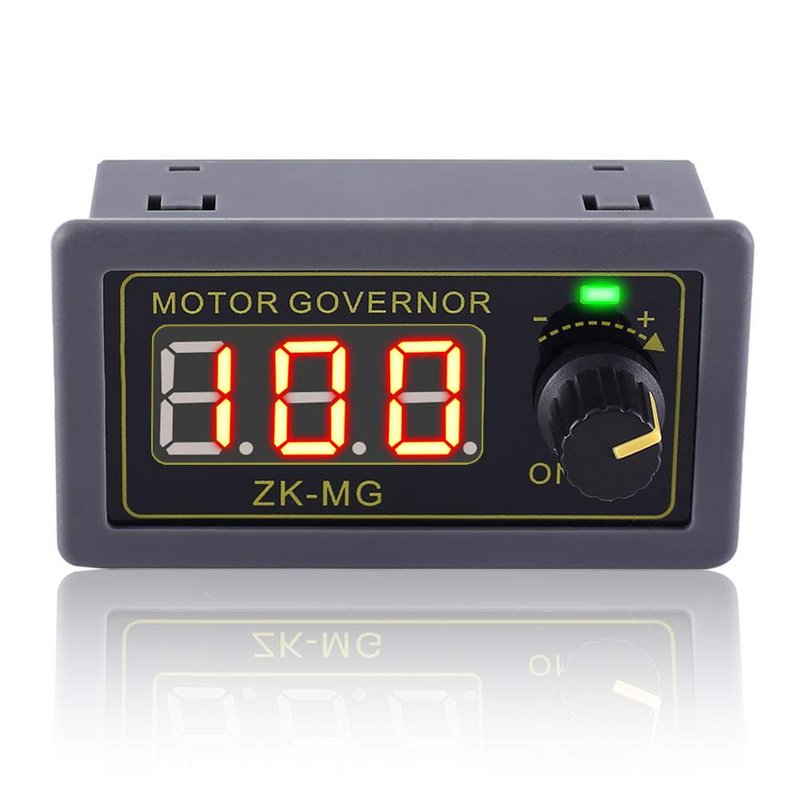

PWM Motor Driver, PEMENOL DC 5V 12V 24V 150W Motor Speed Controller Adjustable Speed Regulator with Stepless Variable Rotary Switch Signal Generator Driver Module
- POWER OFF MEMORY FUNCTION: the motor drive module can automatically save the set parameters, which can effectively prevent data loss after power off. After startup, you can run according to the parameters set last time to improve work efficiency.
- START-STOP BUTTON AND SOFT START FUNCTION: with start-stop button and can be external switch control. In addition, the motor drive module also has a soft start function. When it is opened, the current will increase slowly, reducing the impact of the current on the module, which can effectively protect the motor and extend the service life of the motor.
- DUTY RATIO AND WORKING FREQUENCY CAN BE SET: DC motor governor can be set duty ratio, upper and lower limit of duty ratio and working frequency, convenient for customers to operate according to their own working characteristics of the motor.

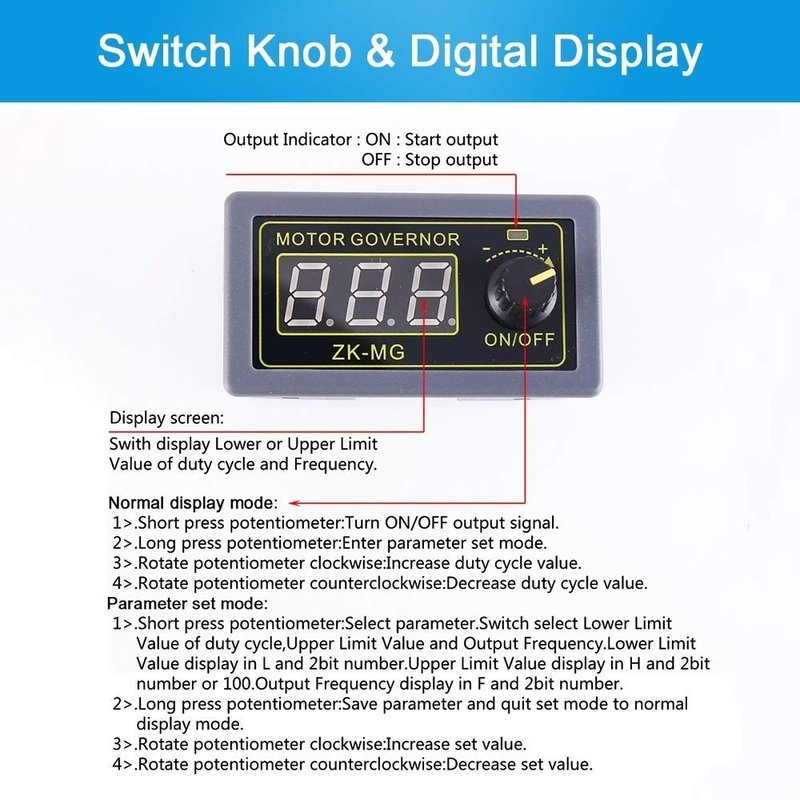

- DIGITAL ROTARY ENCODER: DC brush motor driver adopts digital encoder knob to adjust the motor speed. Compared with ordinary potentiometer, it has good repeatability, high precision, and can be quickly adjusted to the required value.
- AFTER-SALES SERVICE: If you have any questions or needs after receiving the package, please feel free to contact us, we are more than happy to solve all kinds of problems for you.
- Color: DC 5V 12V 24V 150W
- Manufacturer: PEMENOL
- Model Number: 13861
- Package Quantity: 1
- Part Number: 13861
- Style: Motor speed controller
PEMENOL The high-performance PWM DC motor speed controller can adjust the engine speed by adjusting the duty of entry of the output signal. It can also adjust the output frequency to adjust the frequency of the output signal to the motor frequency so that the motor is more stable.
Properties:
Soft start protection
Support setting duty cycle
Support set frequency
Adjustable digital encoder
Stepless speed controller
Support for polarity protection
Support parameter memory function
Instrument protective cover
Application:
Drive motor
Brightness control
Speed control
Generator

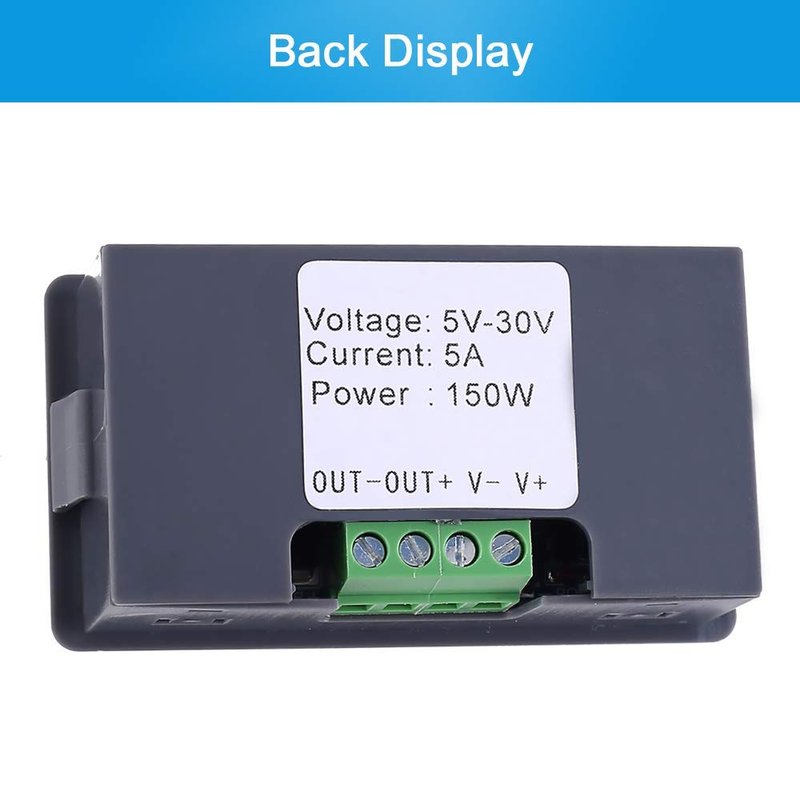

Parameters:
Working voltage: DC 5V-30V
Rated current: 5A
Peak current: 15A
Power: 150 W (max.)
Working Frequency: 1 KHz-99 KHz
Frequency Accuracy: 1%.
Frequency Resolution: 1KHz
Working cycle: 0% -100%
Working cycle resolution: 1%.
Working Temperature: -40 - 85 °C
Working humidity: 0% - 95%RH

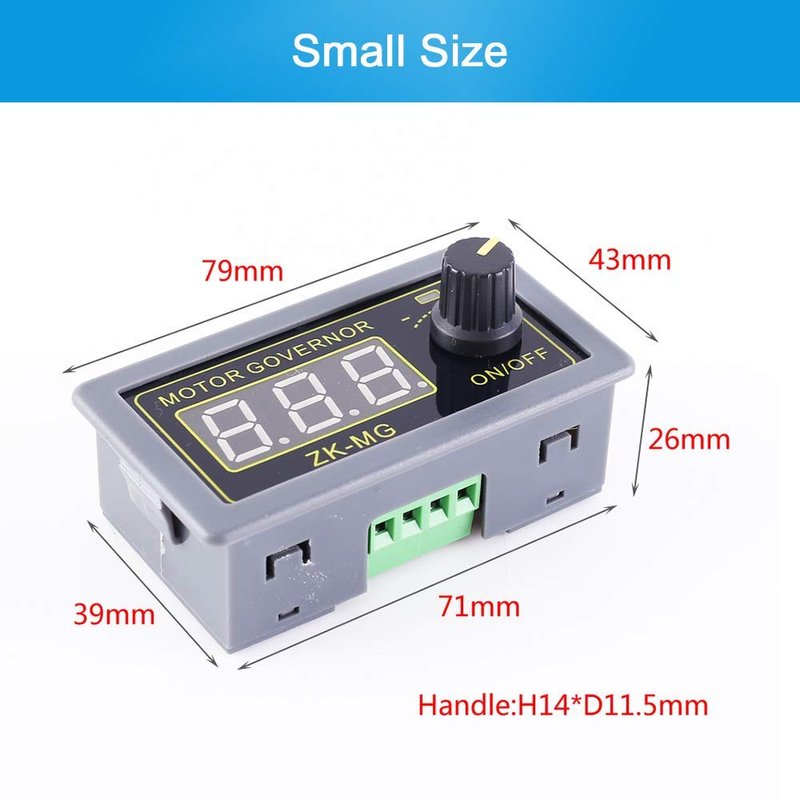

Size: 79* 43 * 40mm
