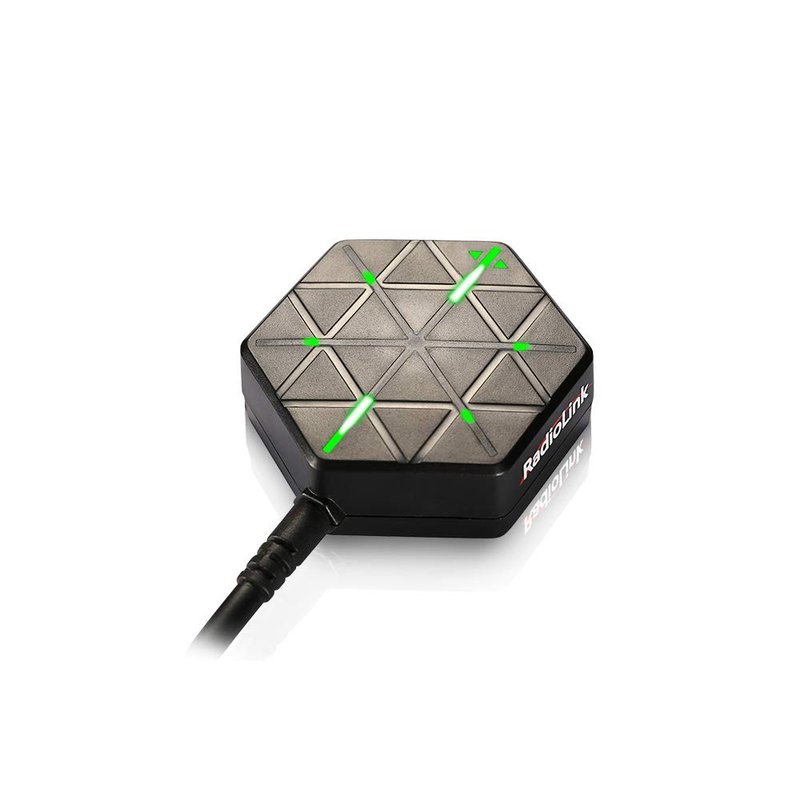

Radiolink M10N GPS SE100 Module High Positional Accuracy Works with GLONASS/BeiDou for APM Pixhawk Flight Controller DIY FPV Drone, Quad and More
- High Positioning Accuracy: Up to 50 centimeters with quad-mode/250 centimeters with Single Mode.
- De-interference and Anti-interference: Two-stage filtering with 78db attenuation effectively filters out-of-band interference.In-band input 1dB compression point -3dBm high linear LNA can minimize the impact of even a small amount of interference signals that pass the filter. Effectively resist strong signal interference, such as high-power image transmission on drones, high-voltage lines, etc.
- Excellent Performance: 50 centimeters positioning accuracy. Positioning 20 satellites in 6 seconds at open ground. Super positioning capability even at the valley bottom. Triple-frequency: 1561±1MHz, 1575±1MHz, 1602~1610MHz. BD1, GPS/L1, Galileo/E1, GLONASS/G1, and quad satellite system operation at the same time are available.

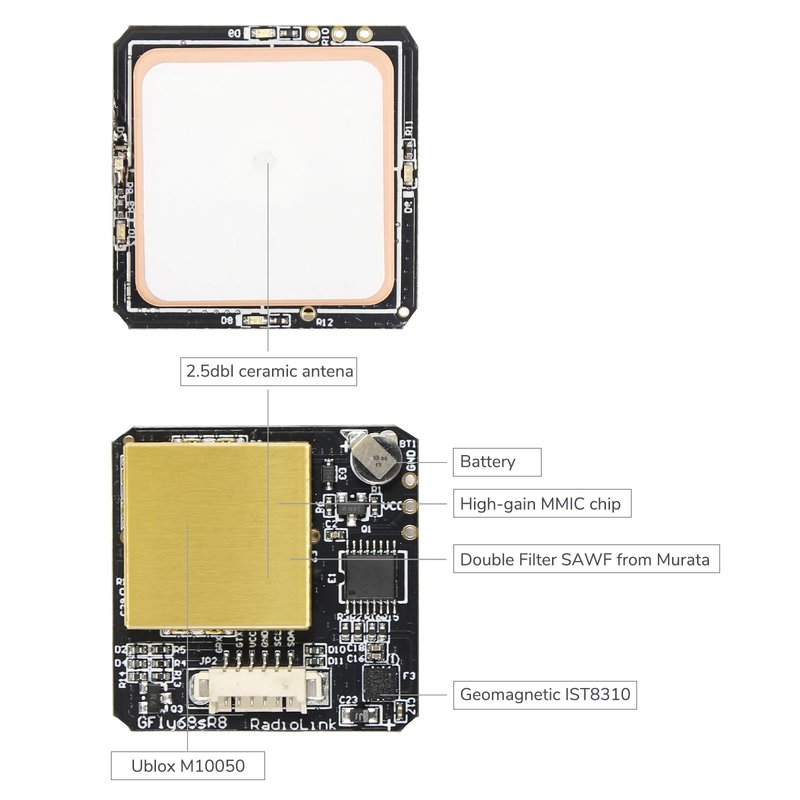

- Top Configuration: GPS decoder chip: Radiolink SE100, with Ublox M10050, is much better than a single GNSS 7N. Built-in high-precision electronic compass IST8310(I2C port). Antenna: 2.5dbI high gain and selectivity ceramic chip antennas. Power amplify IC: High-gain MMIC chip. Double Filter: two-stage SAWF (Surface acoustic wave filter) from Murata.
- Compatible with Pixhawk Flight Controller, 1.89*1.6*0.59in, suitable for DIY drone, quadcopter, multi-copter, rc vehicle's, etc.
- Manufacturer: Radiolink
- Package Quantity: 1
- Part Number: Se100
- Style: GPS SE100
Radiolink Electronics Co., Ltd. was established on September 15, 2003. It has a long history of 15 years and has registered the “RadioLink” trademark in China, the European Union and the United States, and is committed to RC model radio transmitters. Development, manufacturing and marketing of receivers, drones and related components. The company has a complete set of sustainable research and development platform, scientific and efficient procurement, production, quality inspection management system, perfect sales and after-sales service system. We are committed to providing our customers with high reliability and high performance product solutions, as well as technical support and friendly after-sales service.

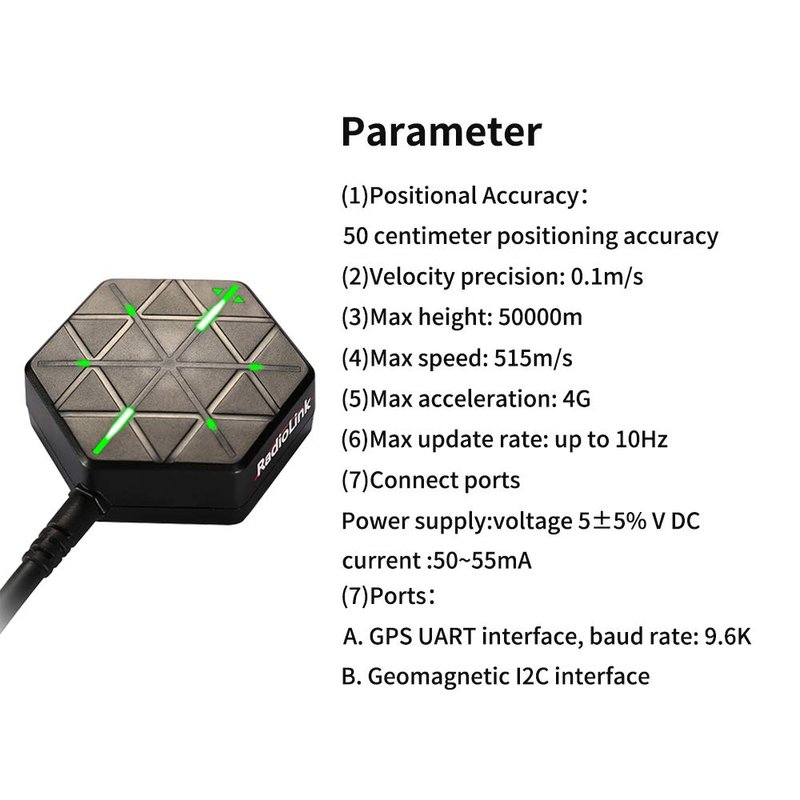

Specifications:
Velocity Precision: 0.1m/s
Max Height: 50000m
Max Speed: 515m/s
Max Acceleration: 4G
Update Rate: 10Hz
Sensitivity Tracking&Nav: -167dBm; Reacquisition: -163dBm
Sensitivity Cold Start: -151dBm; Hot start: -159dBm
Time to First Fix: Cold start: 26s, Hot start: 1s
Power Supply: voltage 5VDC±5%

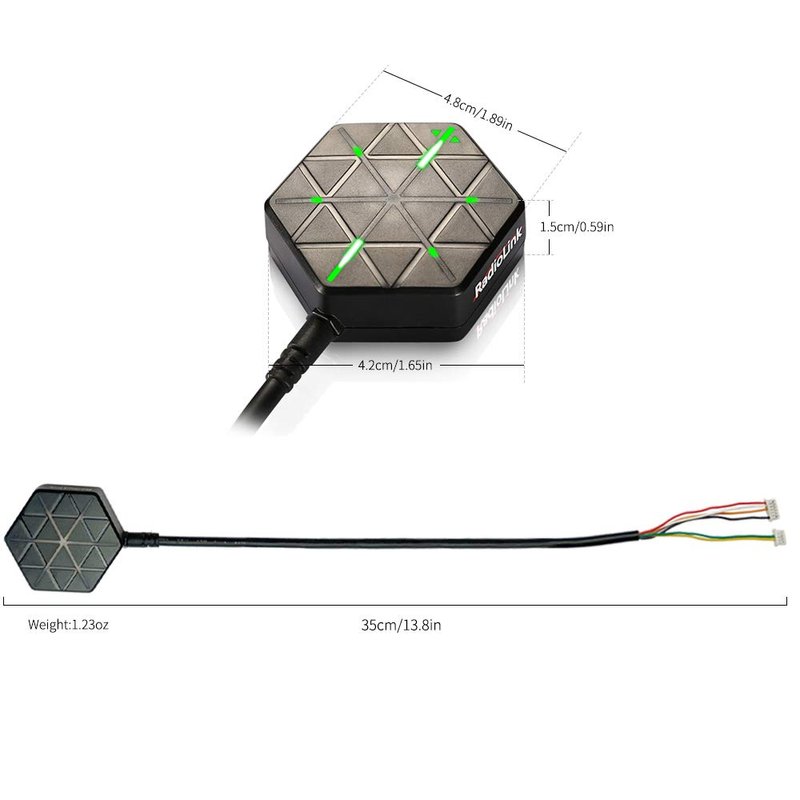

Size: 1.89*1.6*0.59in
Current: 50~55mA
Ports
A.GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
B.Geomagnetic I2C interface

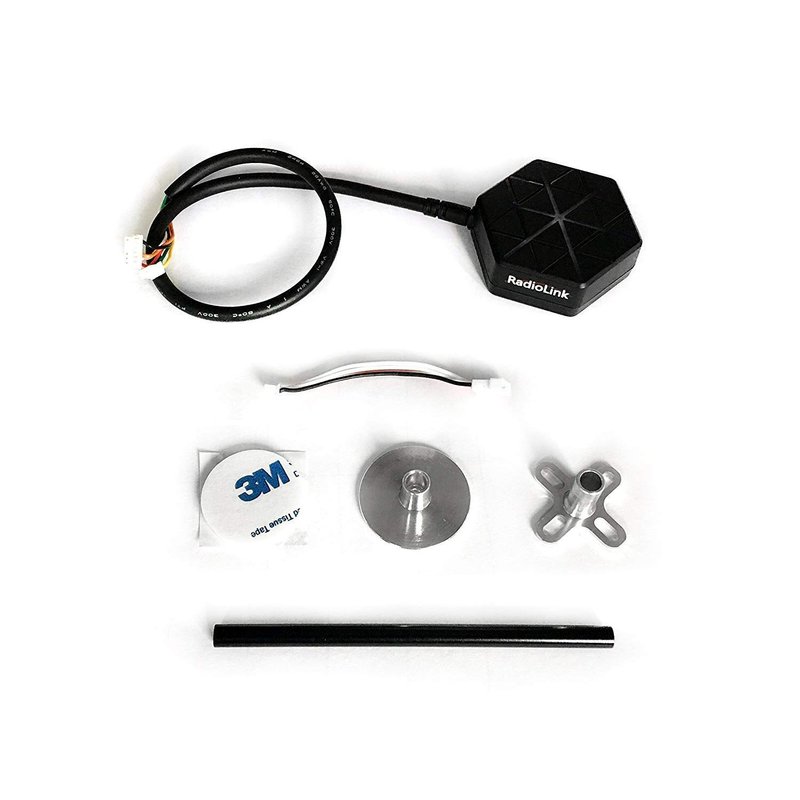

Package Included:
M10N SE100 GPS x 1
Metal rod bracket x 1
Connecting cable x 1
Metal fixing gasket x 2
Foam fixed sticker x 1
Shipping Summary
