Radiolink SUI04 Ultrasonic Sensor Range Finder Obstacle Avoidance, Compatible with RadioLink Flight Controller PIXHAWK, Mini Pix, for Racing Drone, Robots, Quadcopter, Multi-Copter

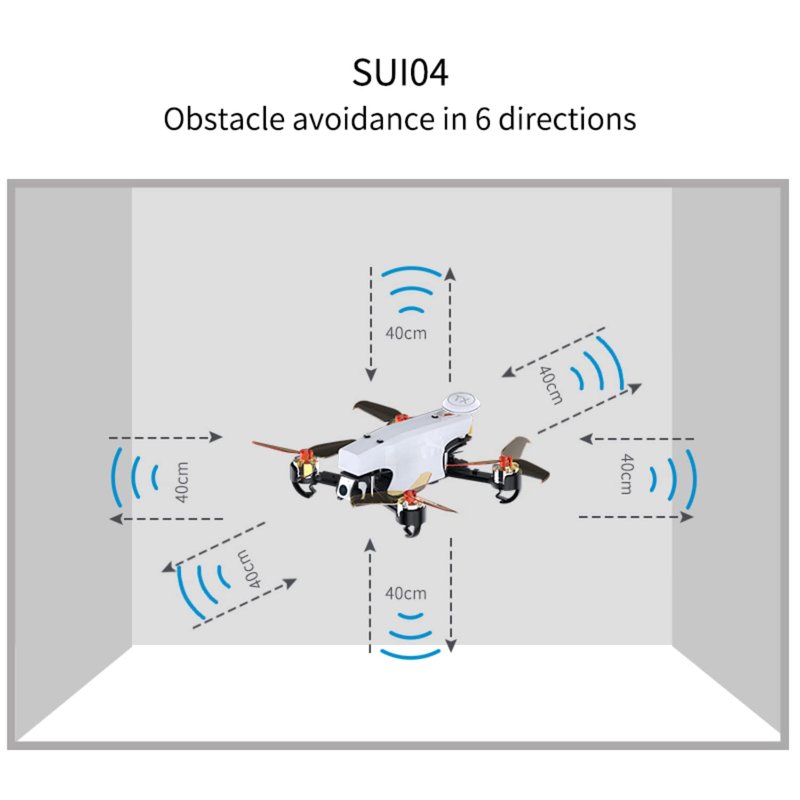

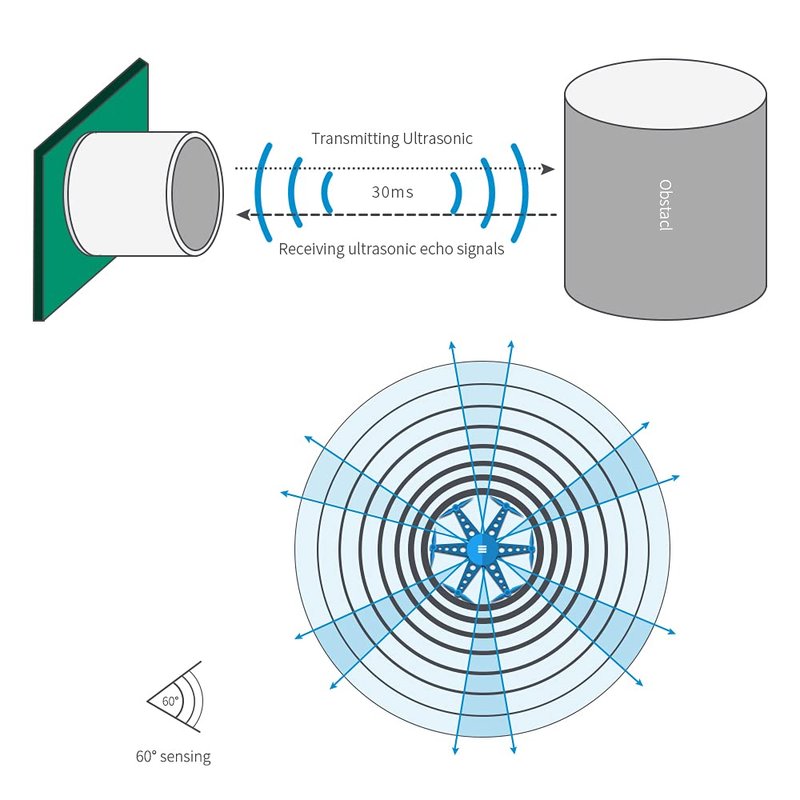

- 【Obstacle Avoidance】: SUI04 is a transmitting and receiving hybrid ultrasonic sensor, it will help the drones (only multirotor) achieve autonomous obstacle avoidance in directions horizontal, obstacle avoidance to the upward side, and altitude hold to the downward. Supports installing up to 6 sensors on one drone for all-direction obstacle avoidance.
- 【High Accuracy and Low Latency】: Support 0.4cm high detection accuracy, even the smallest obstacles can be accurately captured. Precise positioning without fear of obstacles. Extreme Fast Response, latency as low as 30ms.
- 【Small Size and Multifunction】: Single probe only 0.017Lb and 0.78*0.86*0.75in, easy to install on your drone. Obstacle avoidance function can protect your device when the beginner practice fly.

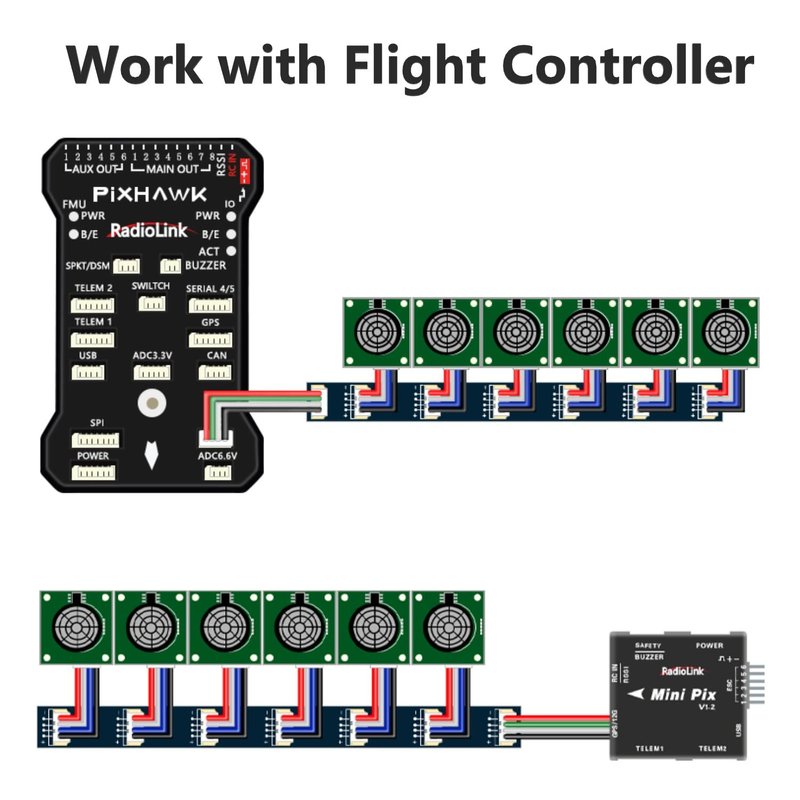

- 【Compatible Mode】: It could suitable for Radiolink PIXHAWK/ Mini PIX/TURBO PIX flight controller, and it also can automatically identify I2C port.
- 【Perfect for】: SUI04 ultrasonic sensor can be used on Agriculture, Training, and rescue. Safety Guaranteed for Outdoors Operation and Training. Can only work with multirotor, such as Quadcopter, Hexacopter, Octocopter, and so on.
- Color: Green
- Manufacturer: Radiolink
- Part Number: SU04
- Size: Small
Radiolink is a high technology manufacturing company dedicated to researching, manufacturing and marketing of RC model radio transmitters. We are committed to providing customers with a high reliability and high performance product solution, as well as providing technical support and friendly after-sales service.

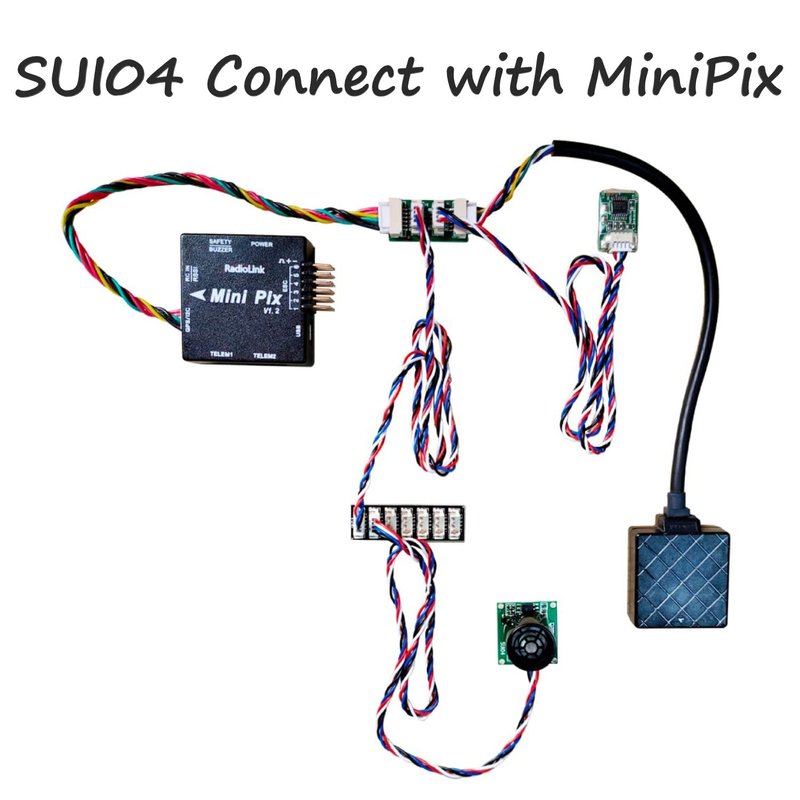

How to connect:
1.Require your PIXHAWK is version 3.5 or later version when you will use automatic obstacle avoidance function.
2.Use the 6pin wire connect the Ultrasonic Sensor SUI04 insert to the TELEM1 or TELEM2 port of PIX.
Please Note:
1.Automatic obstacle avoidance function asks the firmware of PIXHAWK is version 3.5 or later version.
2.The flight controller cannot identify the detection distance when the sensor is far from the obstacle more than 450cm, it will altitude hold by barometer.
3.PIXHAWK have to powered by LiPo battery, it cannot power by USB when you use this utrasonic sensor SU04.
4.When you ready for the first flight, please make your drone at a lower speed to keep the safe flight.
5.please reconnect the PIXHAWK and reopen the MP after all the parameters setup as all the above steps.

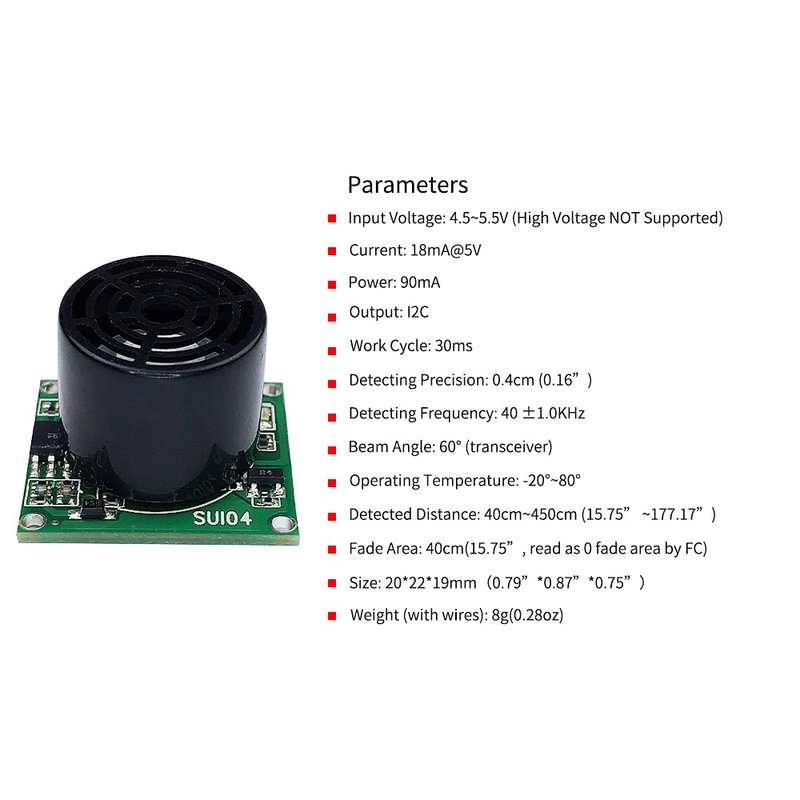

Obstacle Sensor Specifications:

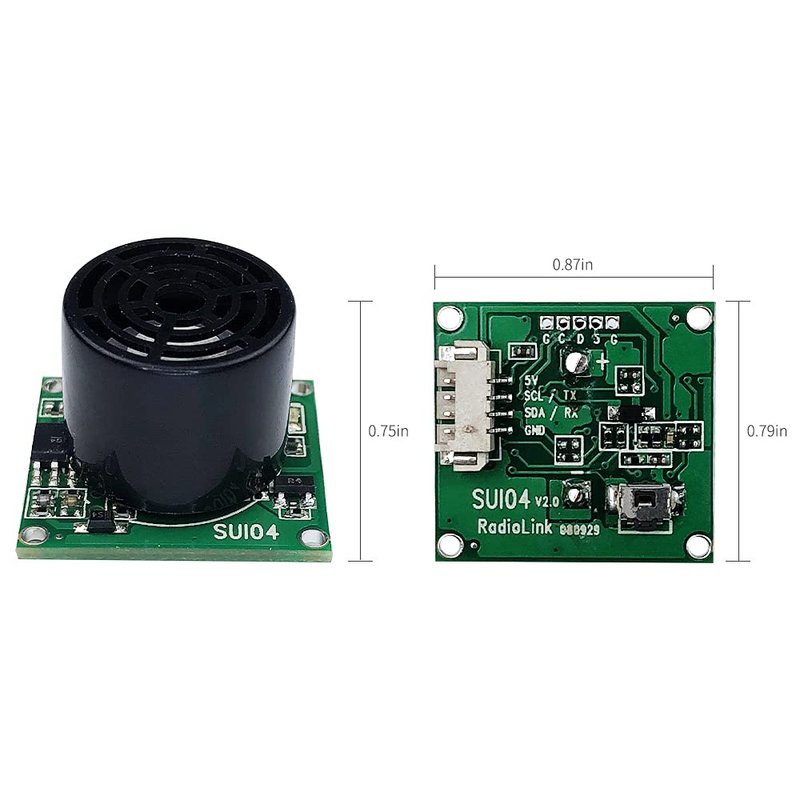

Size: 20*22*19mm
Weight: 8g(include wires)
Input Voltage: 4.5~5.5V(No high voltage)
Current: 18mA@5v
Transmit Rate: 90mA
Working Temperature: -20°~80°
Detection Range: 40cm~450cm
Detection Accuracy: 0.1CM
Detection Frequency: 40+-1.0MHz
Output: I2C
