Runleader 12/24V Battery Fuel Gauge Meter,Battery Level Meter,Lead Acid Battery Applicably,Single & Multiple Screen Display for Golf Cart Club Car Forklift Scrubber Machine (12/24V)
- BATTERY LEVEL METER---- It used on battery powered device to state the remain battery capacity;10 LED bars display the power percentage by different colors(1 red, 2 yellow,7 green);
- 2 CAPACITY DISPLAY MODES---- Different connection methods will be got different displays: If battery connect with positive and negative plugs, the meter will be only lighten the related LED bar of battery capacity; if connected by positive+negative+C plug, the LED bar will be lighten from the first bar to current capacity bar.
- VOLTAGE OUTPUT FUNCTION---- If battery connect with positive,negative,C and R plugs together, you can get a voltage output function, which can output voltage 0V or 5V.

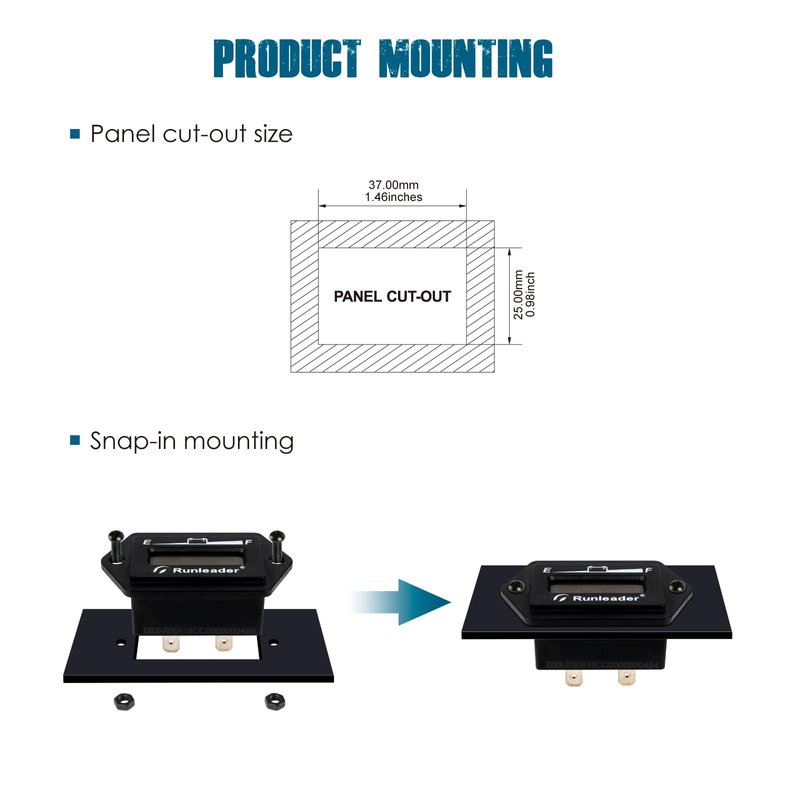

- INSTALLATION ---- Easy to install;Snap-in design and fits standard panel cut-out;panel cutout size:Approx 37×25mm(1.46x0.98 inch).
- OTHER ----Waterproof rate: IP65;Excellent after-sales and technical support(2 years warranty)
- Color: black
- Manufacturer: Runleader
- Package Quantity: 1
- Part Number: RL-BI026
- Size: 12/24V
Runleader RL-BI026-12/24V Battery Fuel Gauge Meter,Battery Level Meter,Lead Acid Battery Applicably,Single&Multiple Screen Display, Monitor of Battery Charge &Discharge,Easy to Install,Waterproof Rate IP65.
1 Battery Fuel Gauge Meter---10 LED bars to state the current battery capacity.
￭There are 3 kinds of colors for the LED bars(1 red,2 yellow and 7 green)
￭Bar by bar display the remained battery capacity.

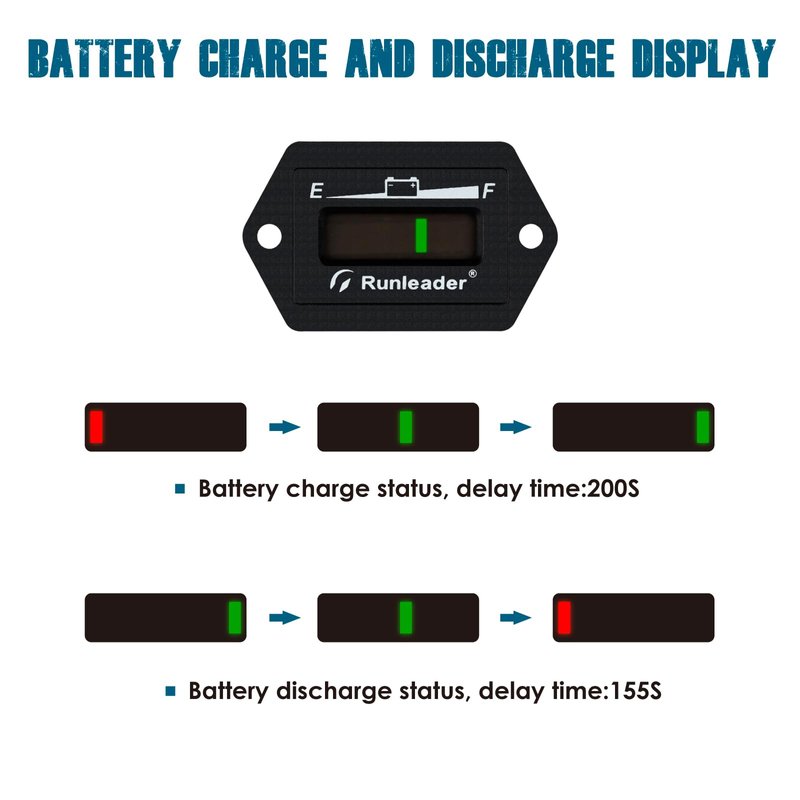

￭The LED bars will be declined one by one every 155s if battery in discharging.
￭Resolution:10% per LED segment.

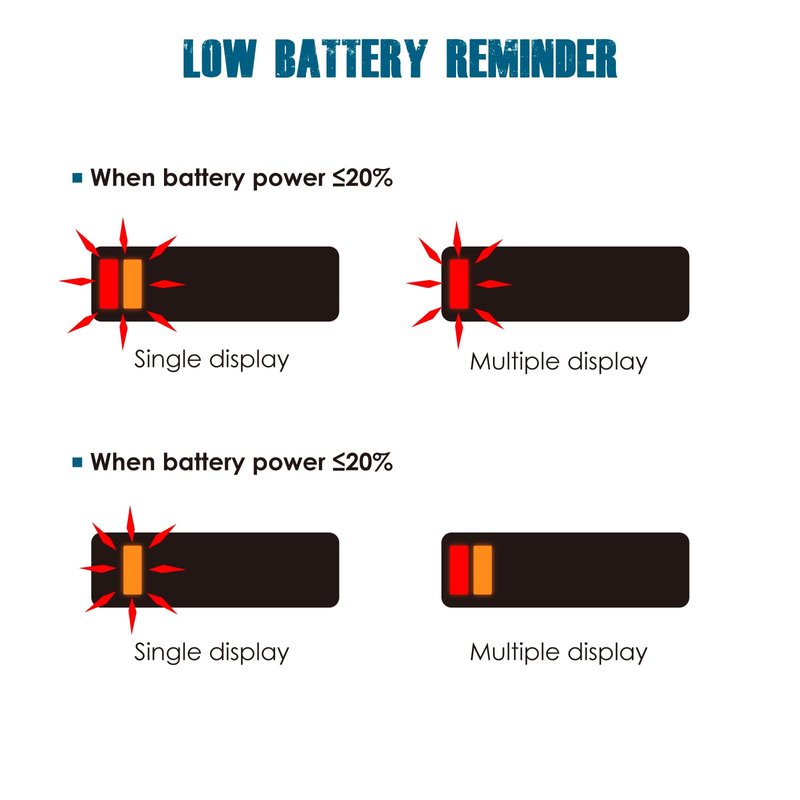

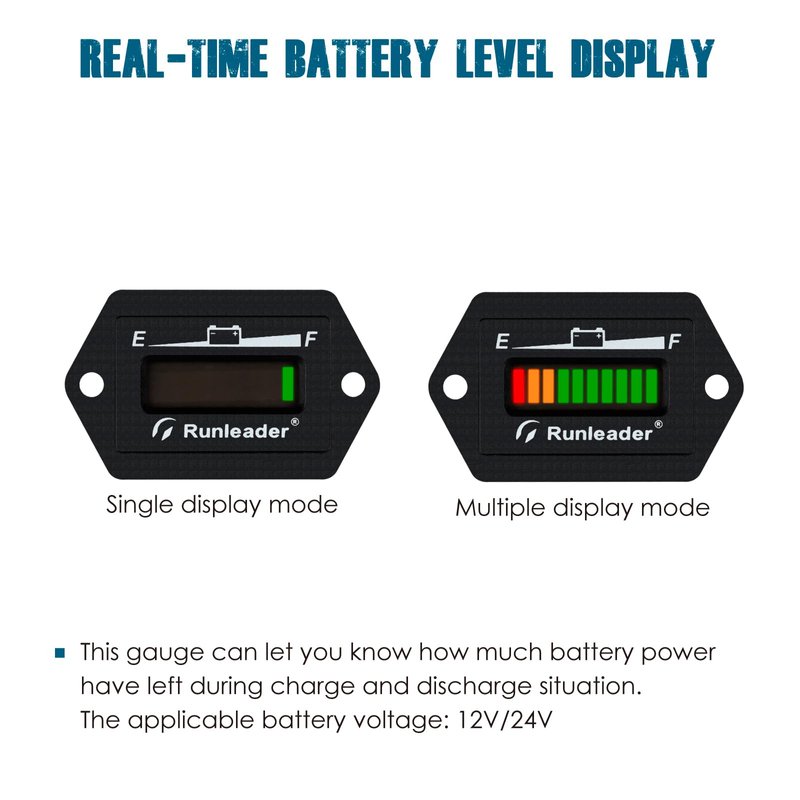

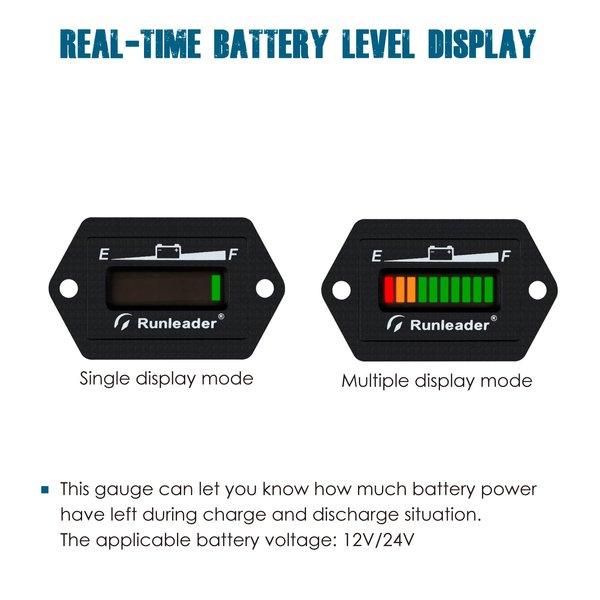

2 Capacity Display Modes---Single Display&Multi-Screen Display.
￭There are 2 kinds of display modes for the battery capacity: single and Multiple.
￭Single Display will be only lighten the related LED bar of the battery capacity. (connect the positive and negative plugs)
￭Multi-screen display will be lighten the LED bars from the first one to current capacity bar.

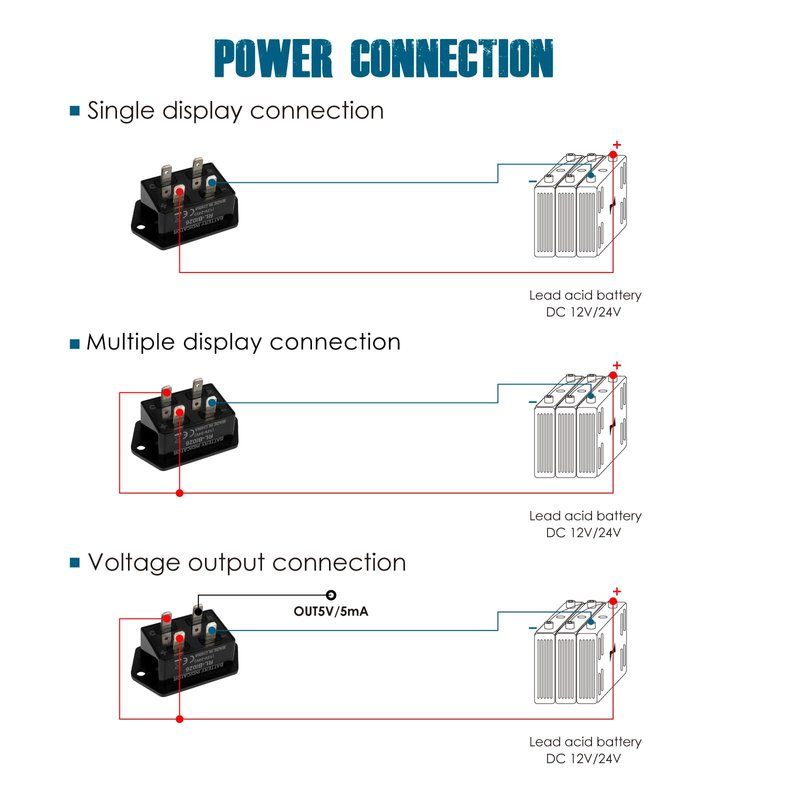

3 Voltage Output Function---To send a signal to external device to be an extra funtion. (e.g.charging reminder,low battery alert)
￭There is a voltage output function when you connect all plugs(positive,Negative,C and R)
￭If battery capacity lower than 10%,the output voltage is 0V;if battery capacity is higher than 10%, the output voltage is 5V.
4 Specifications

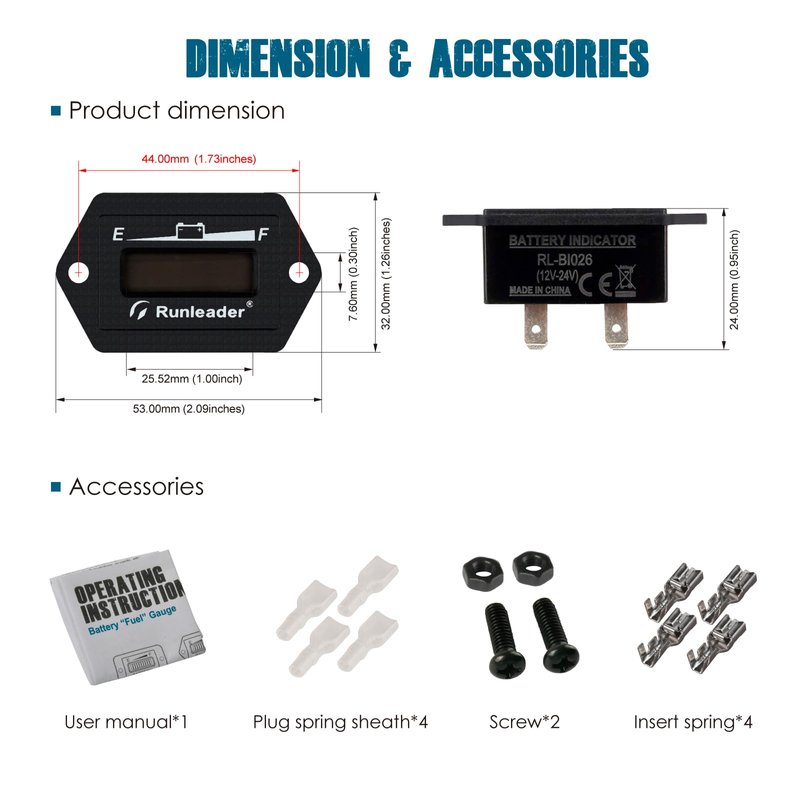

￭Product size 53x32x27.1mm;weight:36G
￭Operared Voltage: 12V,24V,36V,48V;Operated Current:≥20mA;Operated Temperature:-15℃ to +70℃
￭Applicable Battery Type: Lead Acid
￭CE RoHS certification

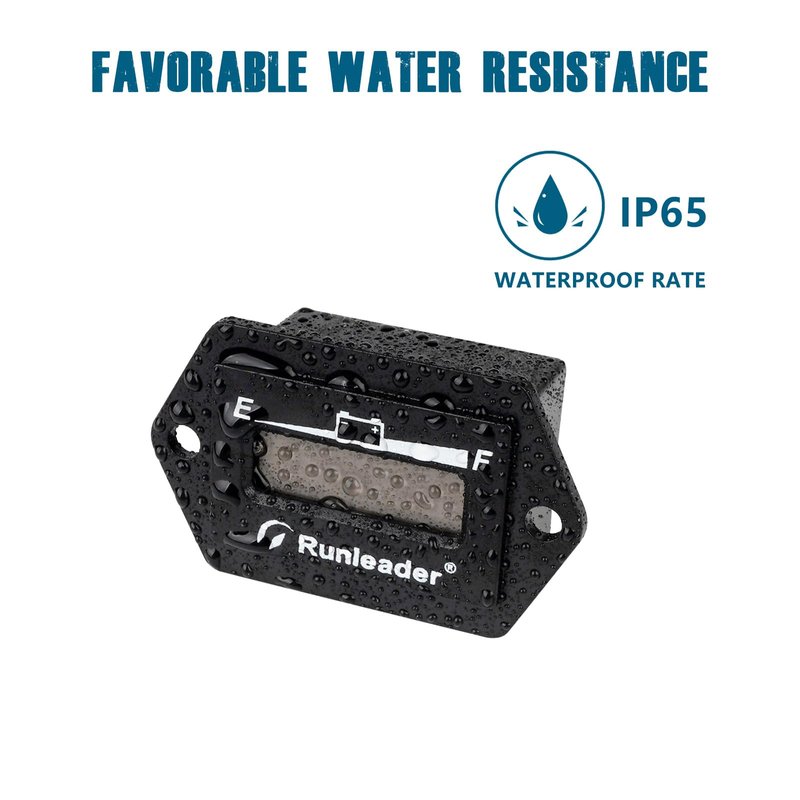

￭Waterproof rate:IP65.
6 Battery indicator Applications:
￭This battery fuel gauges can be used to monitor DC powered equipment such as fork lifts,golf carts, floor care equipment,and any other battery powered equipment.描述
Shipping Summary
