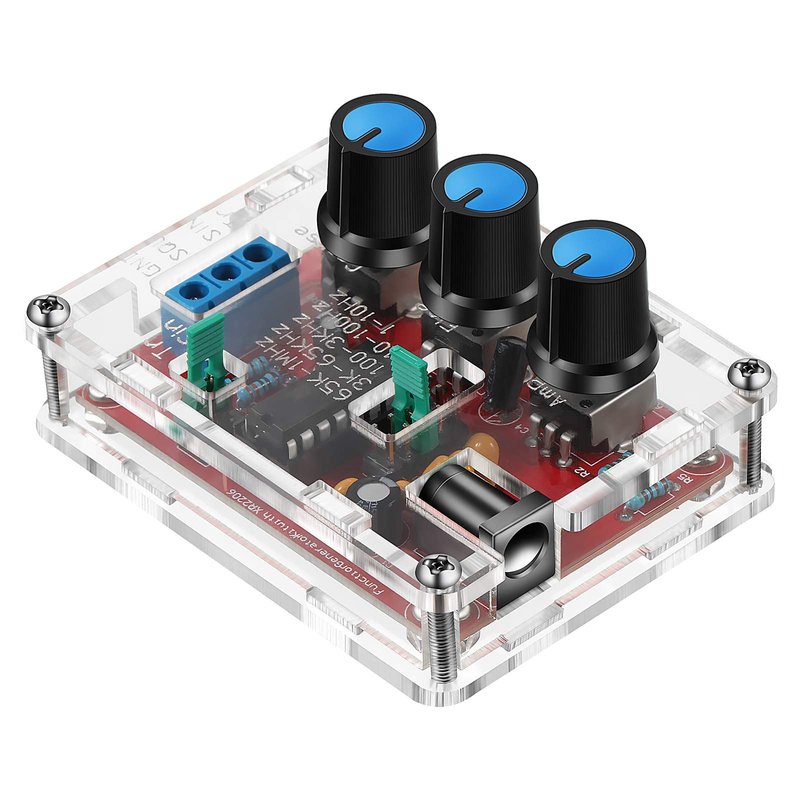

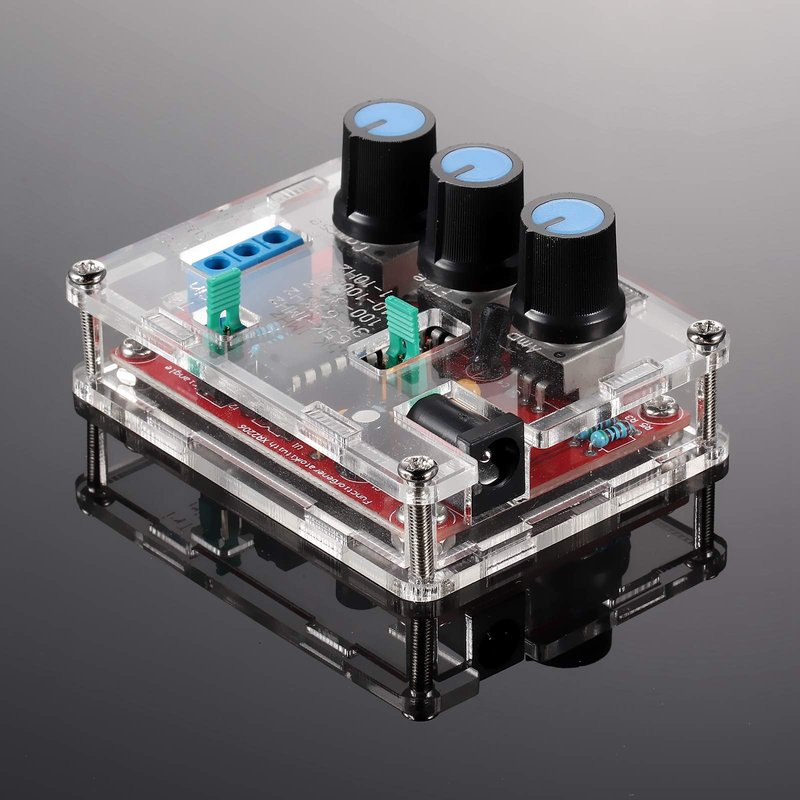

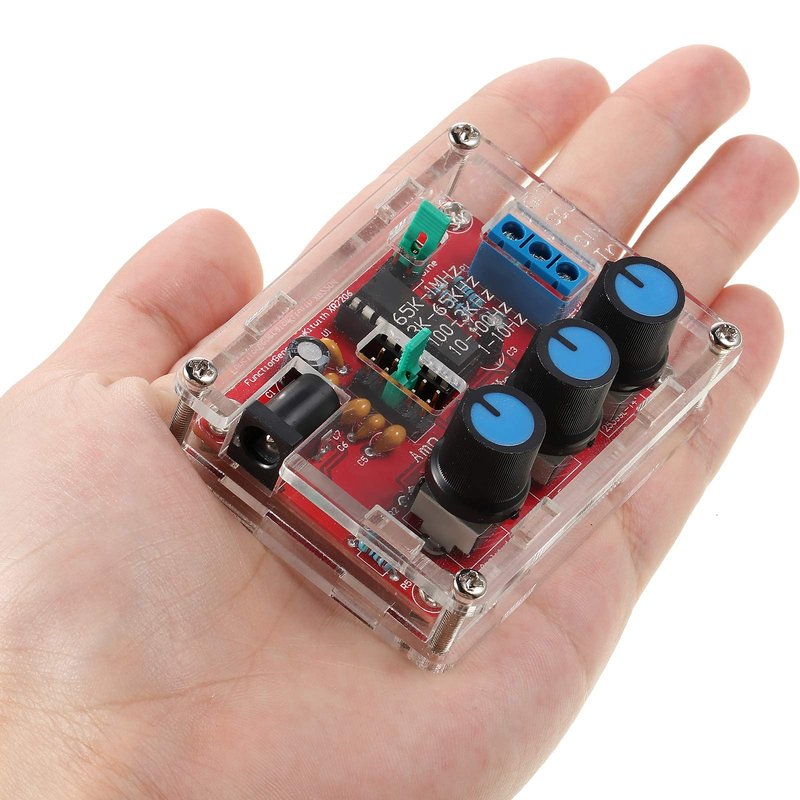

Signal Generator Kit, XR2206 Precise Function Signal Generator Frequency Module Signal Generator DIY Kit Sine Triangle Square Output Adjustable 1Hz-1MHz, 9-12V Direct Current Input (1)
- Good precision: the XR2206 function signal generator is precise, with a transparent case box shell for good assemble; Amplitude: 0-3V at 9V DC input; Distortion: less than 1% (at 1KHz); Flatness: +0.05dB 1Hz - 100kHz

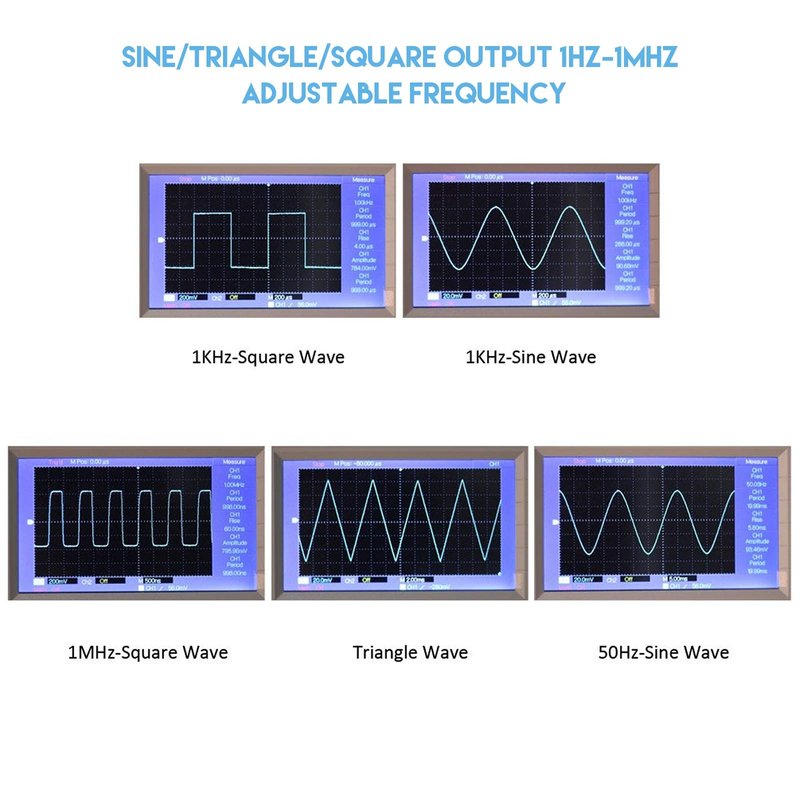

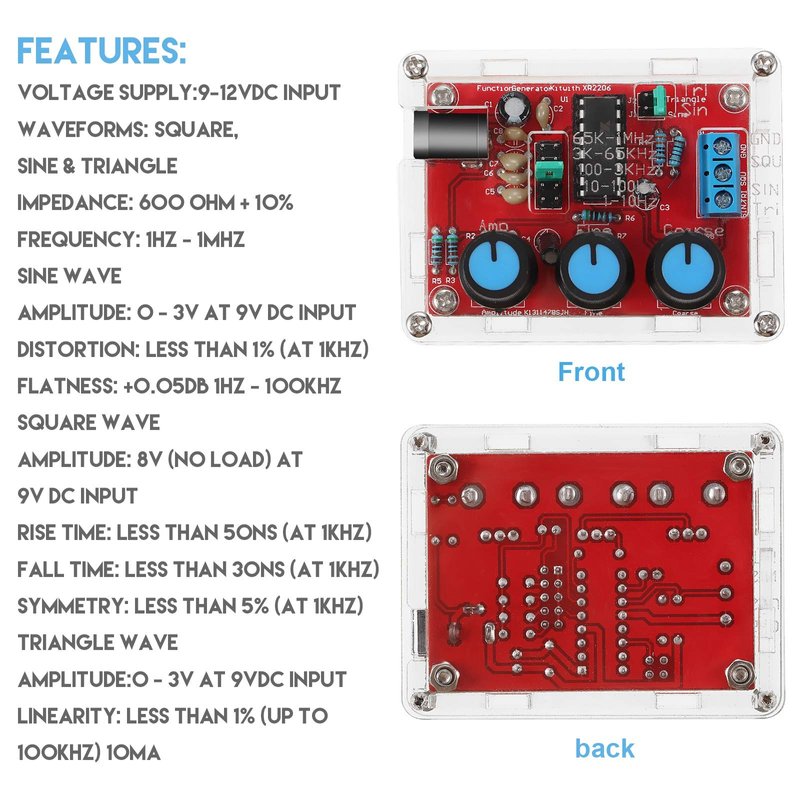

- Parameters: Voltage Supply: 9-12V DC Input; Waveforms: Square, Sine, Triangle; Impedance: 600 Ohm + 10%; Frequency: 1Hz-1MHz; Amplitude: 0-3V at 9V DC; InputDistortion: less than 1% (at 1KHz); Flatness: +0.05dB 1Hz - 100kaHz
- Sine wave parameters:Amplitude: 0-3V at 9V DC input; Distortion: less than 1% (at 1KHz); Flatness: +0.05dB 1Hz - 100kHz
- Square wave parameters: Amplitude: 8V (no load) at 9V DC Input; Rise Time: less than 50ns (at 1KHz); Fall Time: less than 30ns (at 1KHz); Symmetry: less than 5% (at 1KHz)
- Triangle wave: Amplitude: 0-3V at 9V DC input; Linearity: less than 1% (up to 100 KHz) 10 mA
- Color: Clear
- Manufacturer: Weewooday
- Package Quantity: 1
- Part Number: AUB08SMB6DRM
- Style: Digital
Signal generator kit, XR2206 precise function signal generator frequency module signal generator DIY kit sine triangle square output adjustable 1hz-1mhz, 9-12v Direct Current input
1. The welding installation considerations, follow these steps:
2. The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc.
3. Welding IC socket, terminal blocks, finally power socket, adjustable potentiometer.
Insert the power supply, power supply for 5.5 x 2.1 port, inside and outside is negative polarity; Fitting for 9-12 v power supply voltage, and the waveform may not be stable for more than 12V.
Debugging steps:
1. After completion of welding on IC, XR2206, you need to pay attention to the direction of IC, or insert the might damage the chip!
2. Check IC for errors, if any, please correct in time.
Specifications:
Package size: approx. 12 x 8 x 2 cm/ 4.72 x 3.15 x 0.8 inch
Package weight: 69 g/ 2.46 oz
Package includes:

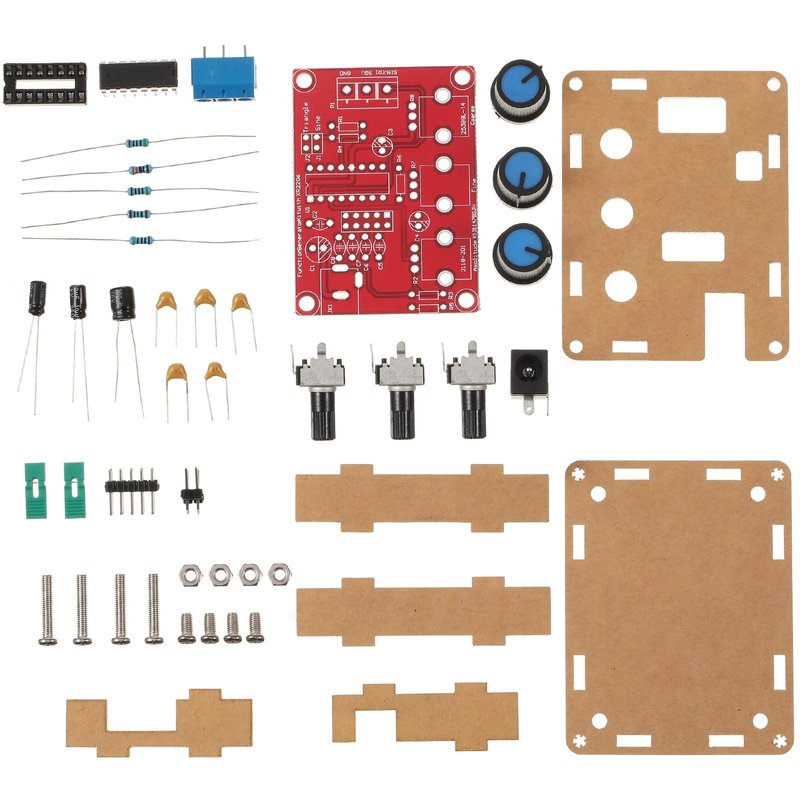

1 x Signal generator DIY kit
Notes:
Manual measurement, please allow a slight dimensional error.
The color may be slightly different due to different screens.
