Smraza 5pcs Ultrasonic Module HC-SR04 Distance Sensor with 2pcs Mounting Bracket for Arduino R3 MEGA Mega2560 Duemilanove Nano Robot XBee ZigBee
- Test mode :Using IO trigger for high level signal.( Not less that 10us),The Module sends eight 40 kHz automatically and detect whether there is a pulse signal back.
- The detection zone: 0.78~196 in/ (2cm~500cm); High precision: up to 0.12 in/(0.3 cm) Effectual angle: less than 15°
- Power supply: 5V DC; Quiescent current: less than 2mA.
- Test distance = ((Duration of high level)*(Sonic :340m/s))/2
- Package included: 5pcs HC-SR04+ 2pcs Mounting Bracket(support HC-SR04 only)
- Color: Blue
- Manufacturer: Smraza
- Model Number: S03sF
- Package Quantity: 1
- Part Number: S03s
If you need more information, please contact us via email to get support.

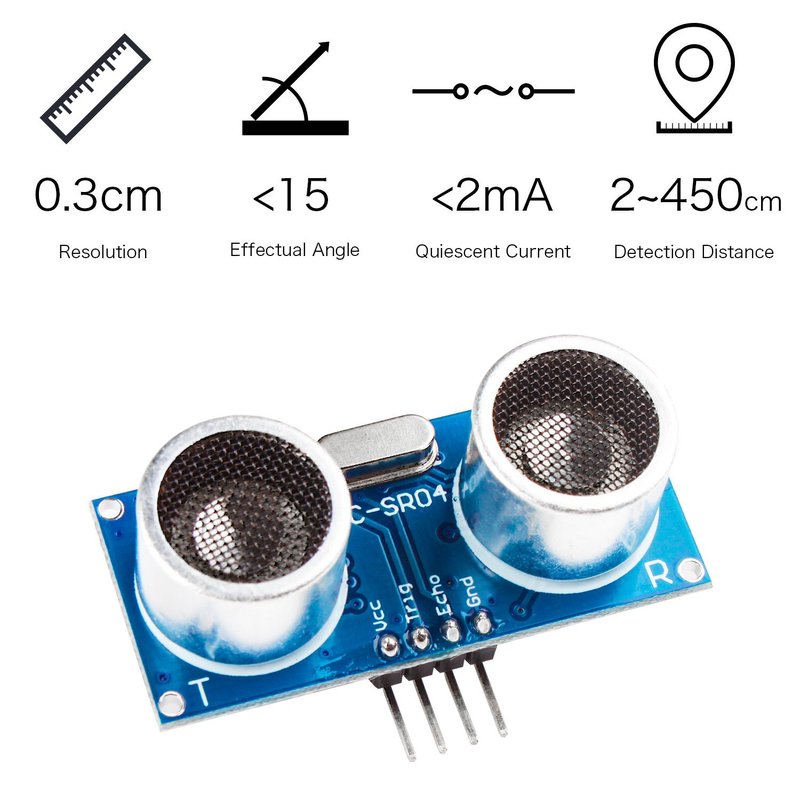

Parameters:
1. Use voltage: DC5V
2. Quiescent current: less than 2mA
3. level output: high 5V low 0V
5. Induction angle: no more than 15 degrees
6. Detection range: 0.78~196 in/ (2cm~500cm)
7. High accuracy: up to 0.12 in/(0.3 cm)

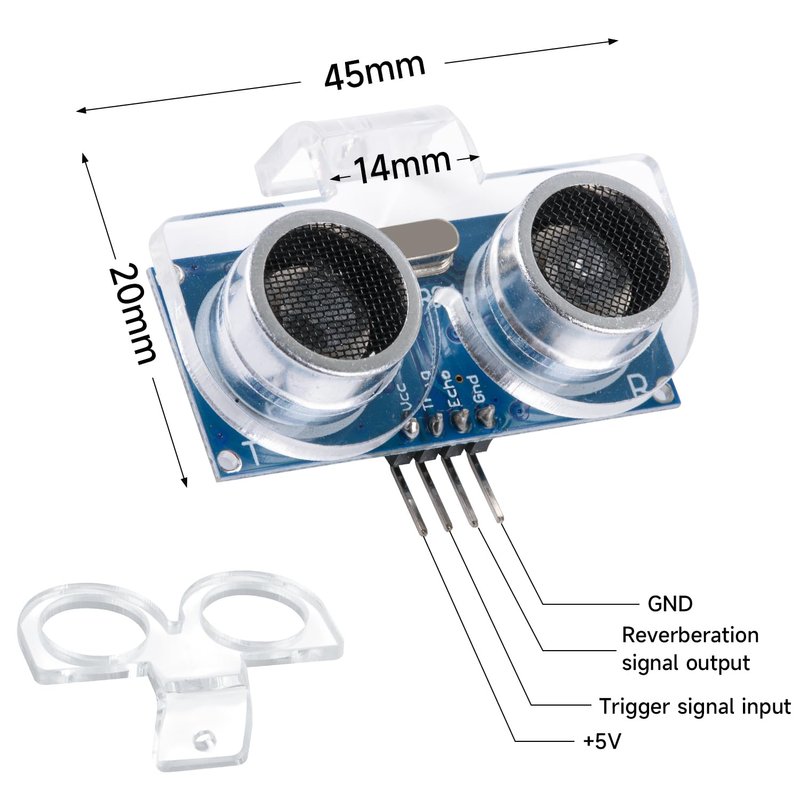

8. Connection mode: VCC, trig (control), echo (receiving end), GND ground wire
Module working principle:
Pull the Trig pin to high level for more than 10us impulse, the module start ranging.
The module automatically sends eight 40KHz square wave to detect whether a signal is returned.
Finished ranging, If you find an object in front, Echo pin will be high level, and based on the different distance, it will take the different duration of high level.
So we can calculated the distance easily.The distance = ((Duration of high level)*(Sonic :340m/s))/2
Dimensions: 1.3 x 0.4 x 0.1 inch/3.03 x 1 x 0.25 cm (L*W*H)

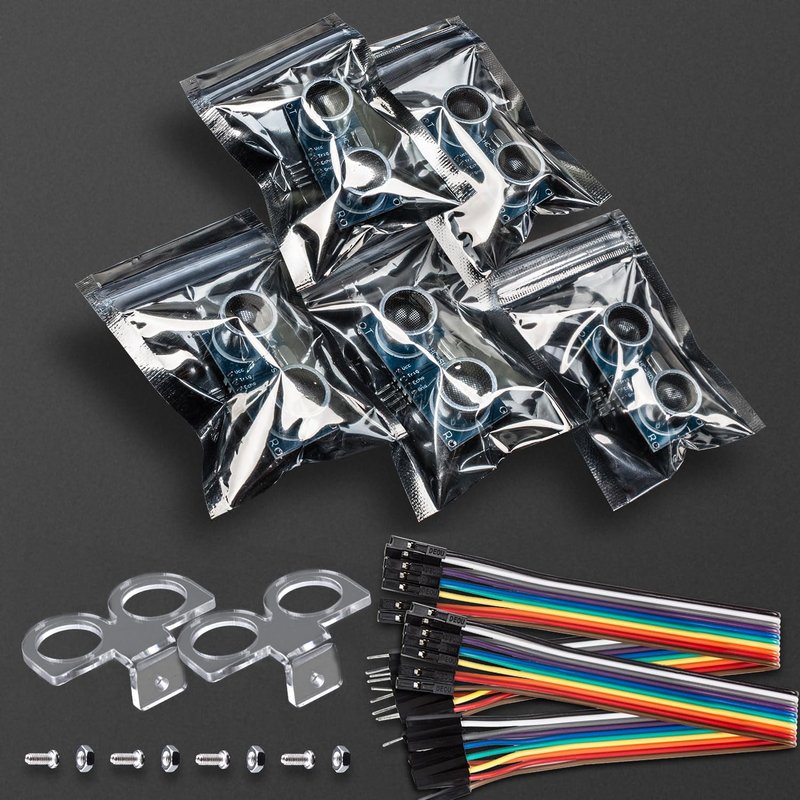

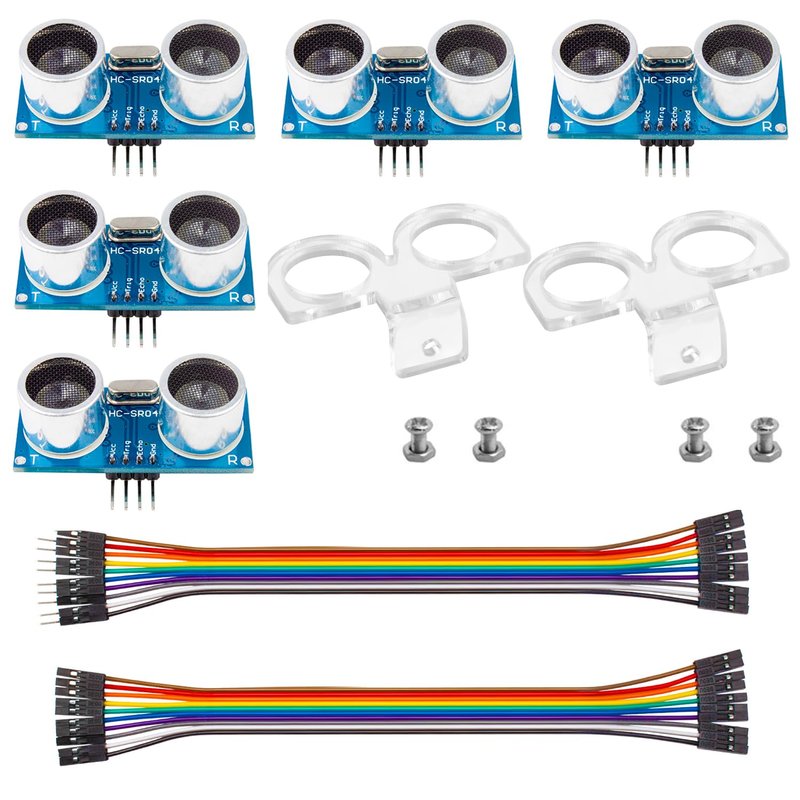

Package included:
1) HC-SR04 Distance Sensor x5
2) Cartoon Mounting Bracket(Support HC-SR04 only) x2
3）Male to Female Jumper Wires x10
Smraza is a professional manufacturer on making all electronics components based on Arduino and Raspberry Pi.If you have any technical questions, please contact us by email to get support.
