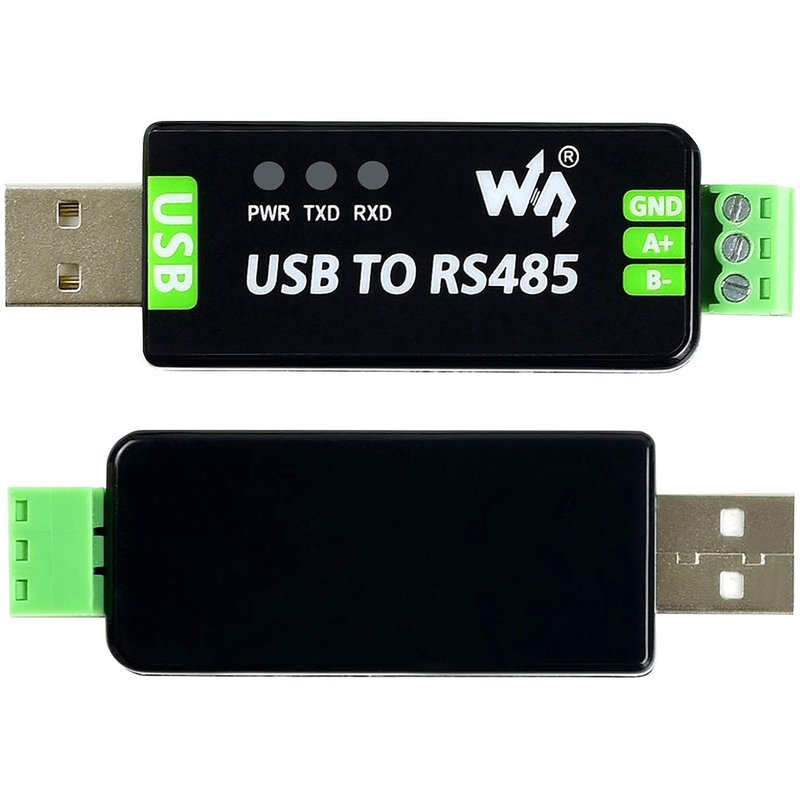

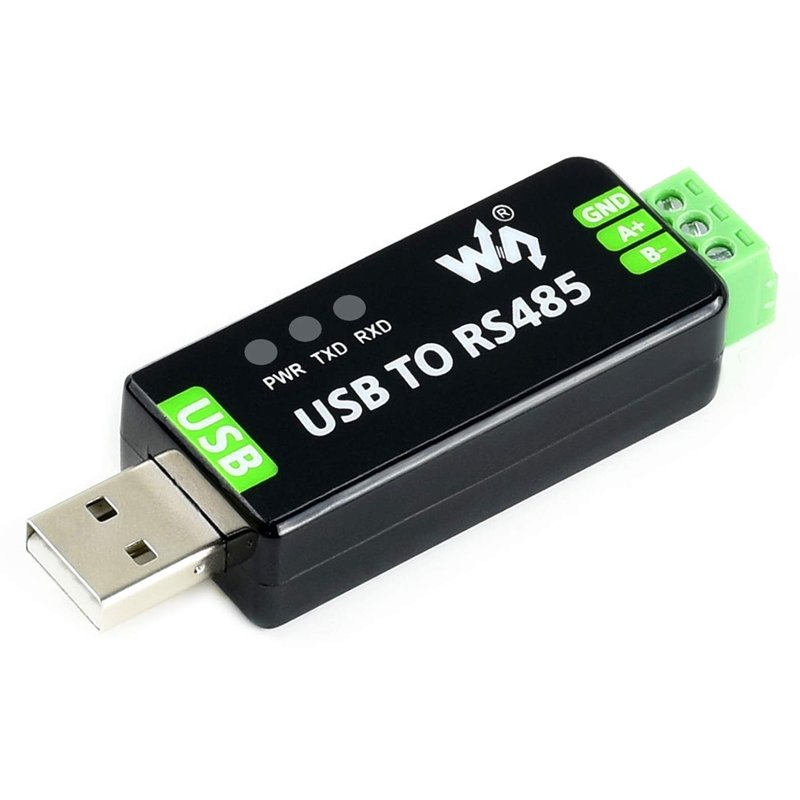

USB to RS485 Converter Industrial Adapter Original FT232RL and SP485EEN Fast Communication Embedded Protection Circuits Resettable Fuse ESD Protection

Brand: waveshare Sold By: Everymarket
£25.07 In Stock
Ships from US, Arrives in 10-17 business days
Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
26
May2025
-
04
June2025
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
USB to RS485 Converter Industrial Adapter Original FT232RL and SP485EEN Fast Communication Embedded Protection Circuits Resettable Fuse ESD Protection

USB to RS485 Converter Industrial Adapter Origi...

£25.07

Product Details
  • Industrial USB to RS485 bidirectional converter with original FT232RL and SP485EEN chip. Due to its stable communication, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic.
  • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.
  • Transmission distance up to 1.2km--- The USB signal can be converted into a balanced differential RS485 signal and the transmission rate is stable. The reliable speed is 300-921600bps, the transmission distance is about 1.2km for RS485, and about 5 meters for USB.
  • Multi system Support: Supports Linux, Android, WinCE, Win11/10/8.1/8/7/XP, etc.

  • Color: FT232RL Version
  • Manufacturer: Waveshare
  • Model Number: Industrial USB to RS485 Converter
  • Package Quantity: 1
  • Part Number: Industrial USB to RS485 Converter

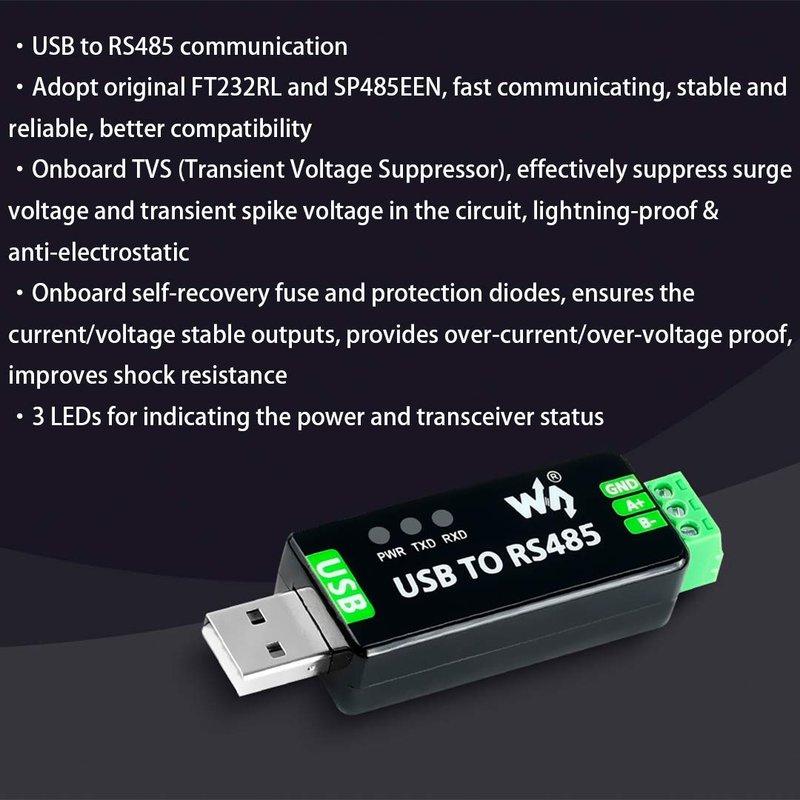

Features
Support USB to RS485 bidirectional conversion
Onboard Original FT232RL and SP485EEN chip. Fast communication, stable and reliable, better compatibility
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
3 LEDs for indicating the power and transceiver status

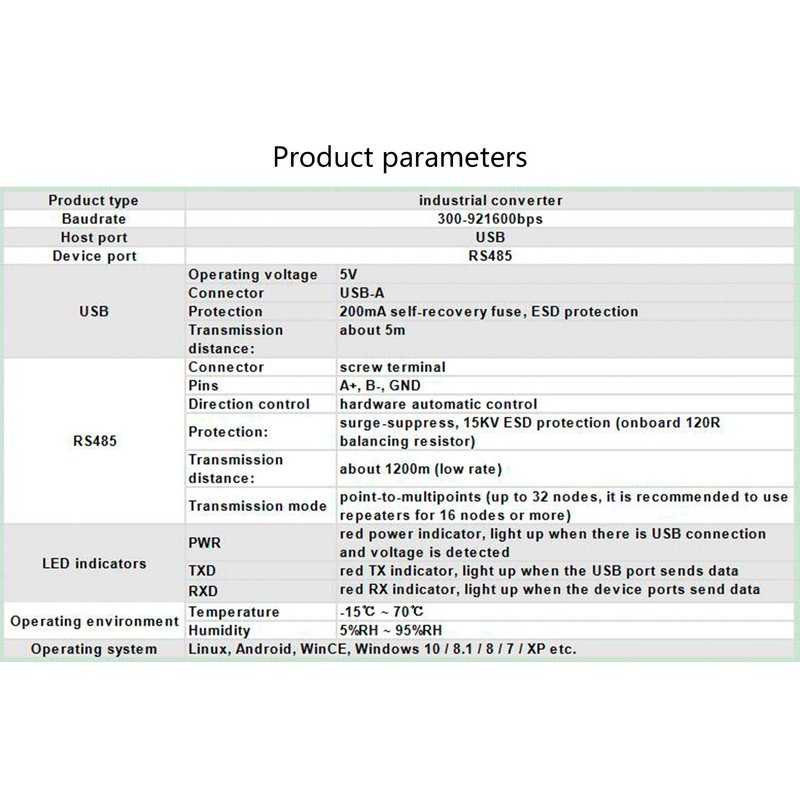

Specifications
Product type: industrial converter
Baudrate: 300-921600bps
Host port: USB
Device port: RS485

USB
Operating voltage: 5V
Connector: USB-A
Protection: 200mA self-recovery fuse, ESD protection
Transmission distance: about 5m

RS485
Connector: screw terminal
Pins: A+, B-, GND
Direction control: hardware automatic control
Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance: about 1200m (low rate)
Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

LED indicators
PWR: red power indicator, light up when there is USB connection and voltage is detected
TXD: red TX indicator, light up when the USB port sends data
RXD: red RX indicator, light up when the device ports send data back

Operating environment
Temperature: -15℃ ~ 70℃
Humidity: 5%RH ~ 95%RH
Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP

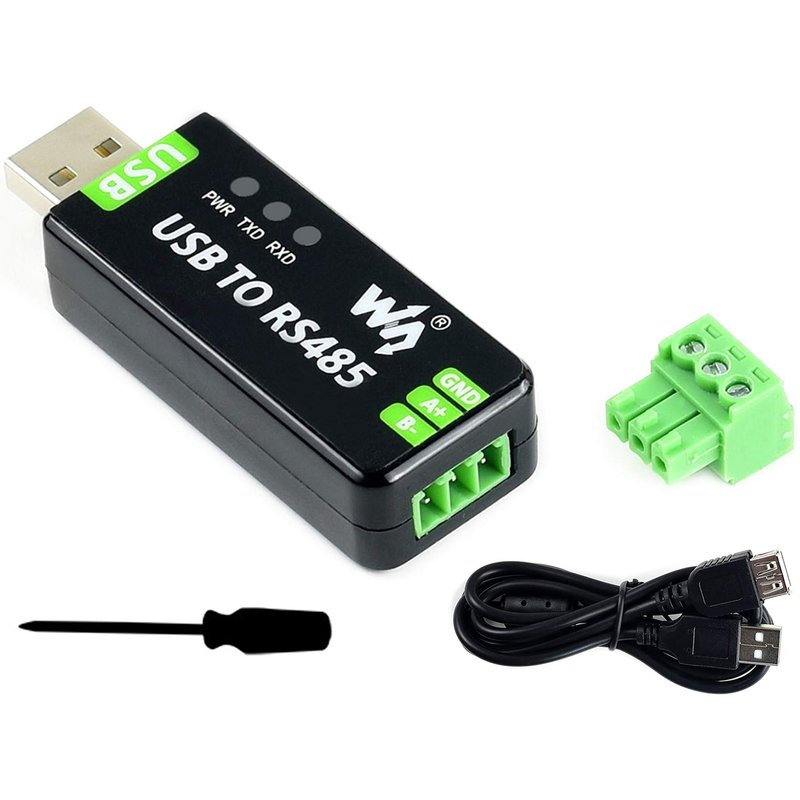

PACKAGE CONTENT
1.USB TO RS485 x1
2.USB-A male to female cable x1
3.Screwdriver x1
