xicoolee 2.13inch E-Paper Display Module for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+, 122 x 250 Pixels Two-Colour, Supports Partial 560ms and Full 950ms Refresh SPI Interface
- 122 x 250 pixels, 2.13 inch e-paper e-ink display module is based on compatible with Raspberry Pi 40PIN GPIO header design, intended for Raspberry Pi series motherboard, such as for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B
- Supports partial refresh minimum 560ms (4-wire SPI status) and full refresh Minimum 950ms (4-wire SPI status). We provide open source demo codes available for Raspberry Pi, Ardui. Mega and STM32 development boards
- SPI communication interface is reserved to facilitate connect to Arduino/STM32 and other control boards. SPI interface, less pin occupation. Adds a SPI line number selector switch
- Onboard Voltage Translator, which can be compatible with 3.3V and 5V MCUs
- Low power consumption. Keeps displaying last content for a long time even when power down. Basically power is only required for refreshing
- Color: black and white
- Manufacturer: xicoolee
- Model Number: 7ddebcaf-7c41-4e44-9844-677cbee5ccee
- Package Quantity: 1
Overview:
This product is a 2.13 inch e-paper display module.
It is designed based on compatible with Raspberry Pi 40PIN extension header and is intended for Raspberry Pi series motherboards.
We provide the C and python demo codes using for Raspberry Pi, reserve SPI control interfaces to facilitate to connect to Ardui., STM32 and other control boards.
We also provide Ardui and STM32 demo codes, which can draw dots, lines, rectangles and circles, and display number characters in English.

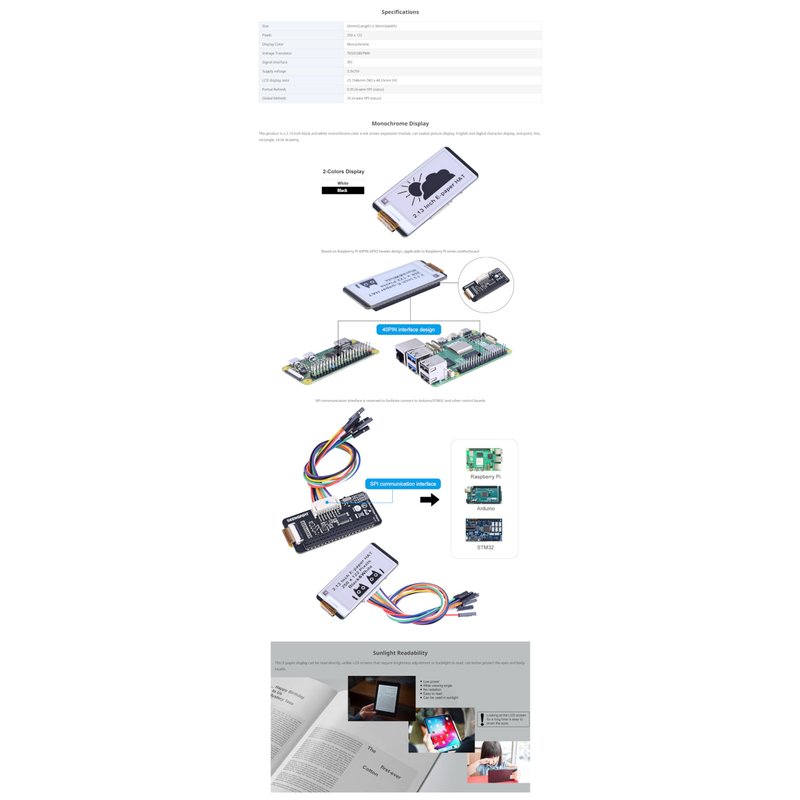

Specifications
Size: 65mm(Length)*30mm(width)
Pixels: 122*250
Display Color: monochrome
Voltage Translator: TXS0108EPWR
Signal interface: SPI
Supply voltage: 5V
LCD display area: 23.7046mm (W)* 48.55mm (H)
Partial Refresh: Minimum 560ms (4-wire SPI status)
Global Refresh: Minimum 950ms (4-wire SPI status)

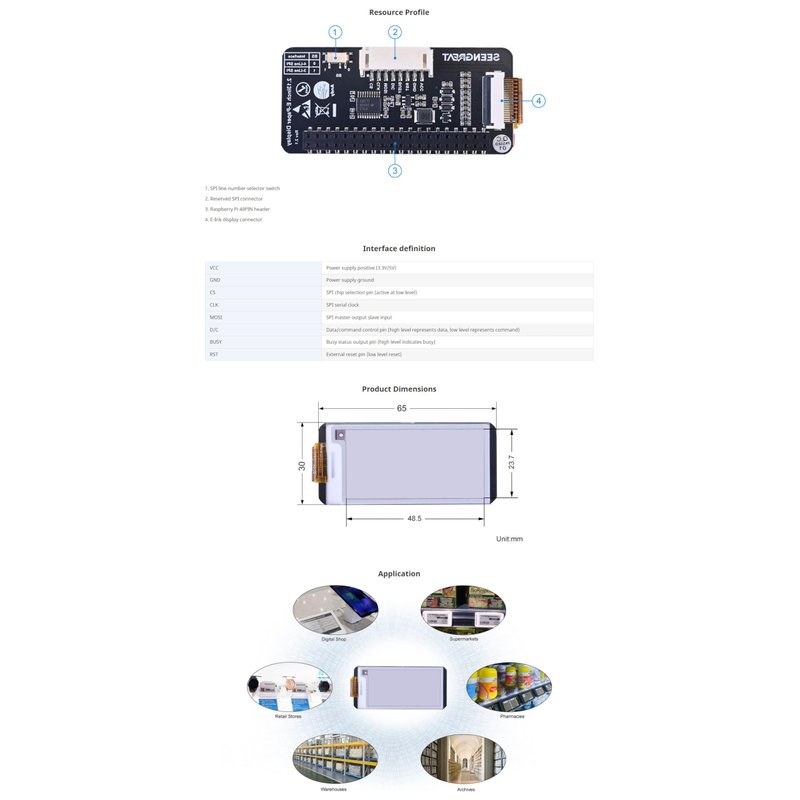

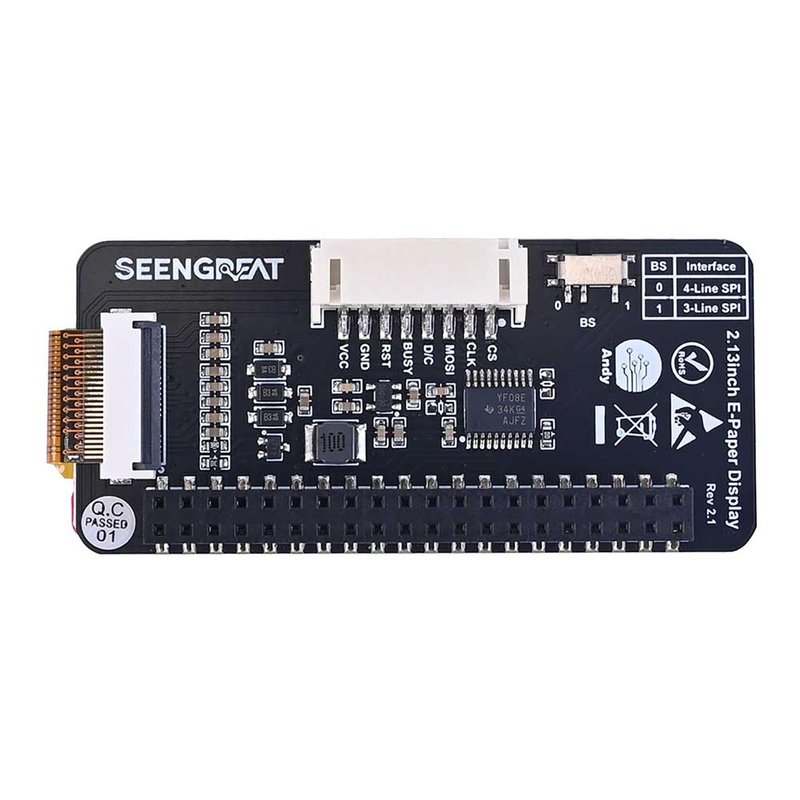

Interface Definition
VCC: Power supply positive (5V)
GND: Power supply ground
CS: SPI chip selection pin (active at low level)
CLK: SPI communication SCK pin
MOSI: SPI communication MOSI pin
D/C: Data/command control pin (high level represents data, low level represents command)
BUSY: Busy status output pin (low level indicates busy)
RST: External reset pin (low level reset)
Package contents:

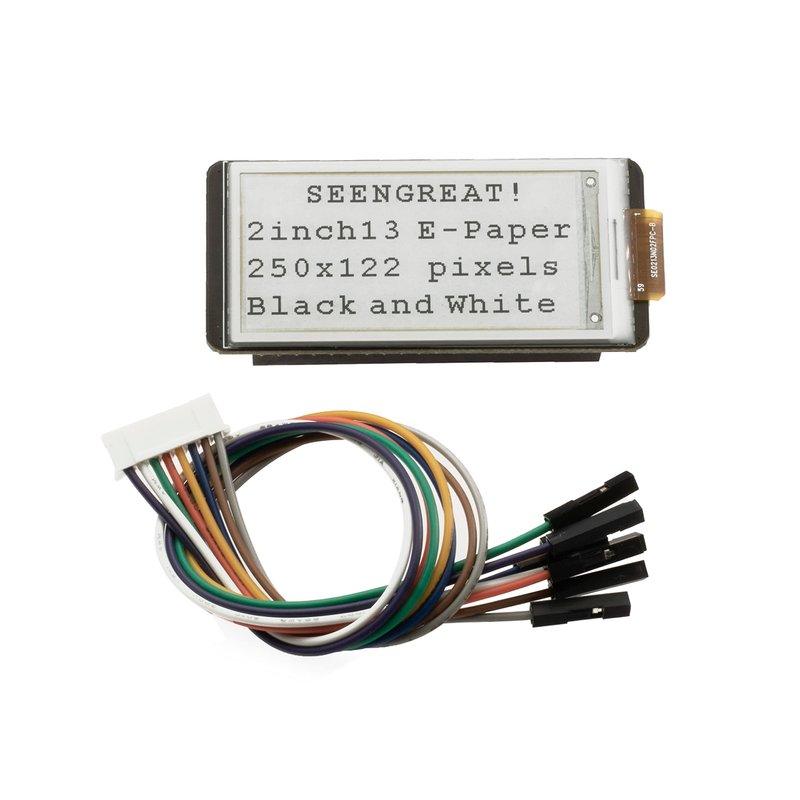

1. 2.13inch E-Paper Display x1
2. PH2.0 8PIN connecting cable 20cm x1
