Youmei RS-70 Digital SWR/Watt Meter HF 1.6-60MHz 200W for Two-Way Radio

Youmei RS-70 Digital SWR/Watt Meter HF 1.6-60MH...

£160.00

Product Details
  • Forward/Reflected/VSWR ration in one push button

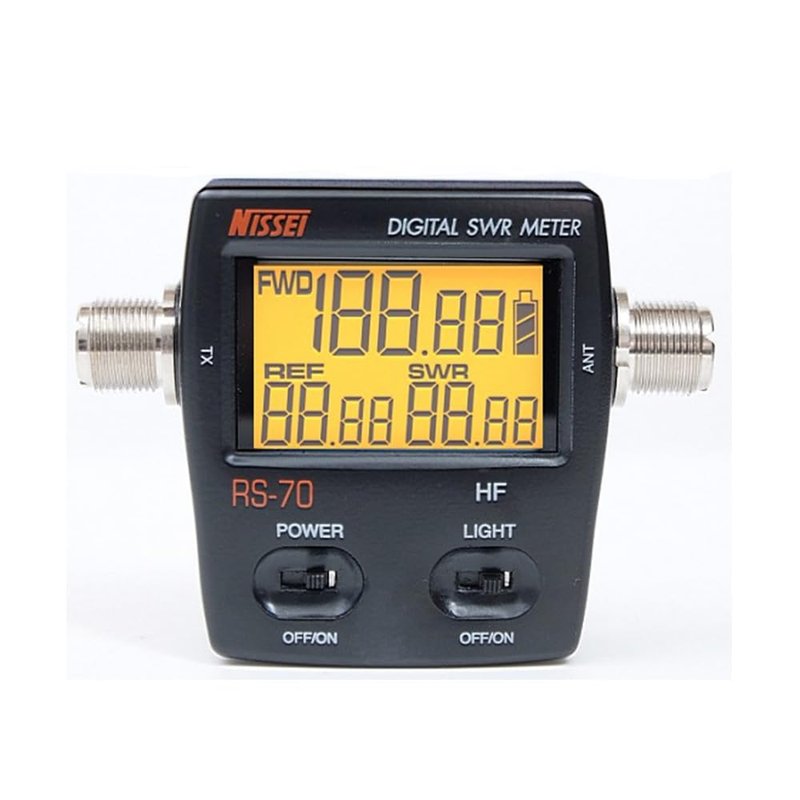

  • LCD backlight display for easy reading
  • Convenient control layout for easy operation
  • Powered by two AAA batteries/rechargeable batteries or external USB port
  • Low insertion loss(0.3dB or lower) structure allows it to be connected permanently

  • Manufacturer: DotDotTech
  • Model Number: 8523727015
  • Package Quantity: 1
  • Part Number: 8523727015

Specifications:
Frequency range: 1.6-60 Mhz
Power range:0-200W +/- 5%
Impedance: 50 ohm
Connector: M-J(So-239 (M))
Dimension: 70W x 78H x 30D mm
Net Weight: 220g


Measurement:
1. Apply output of transceiver to "TX" and antenna or load to "ANT".
2. "POWER" on for ready to use.
3. LCD display show simultaneously "Fwd/Ref Power and SWR".
4. For back-light, please switch "LIGHT" to "ON".
5. No function in 30 seconds, the backlight will automatically off.
6. Once PTT launched, the backlight will be back.

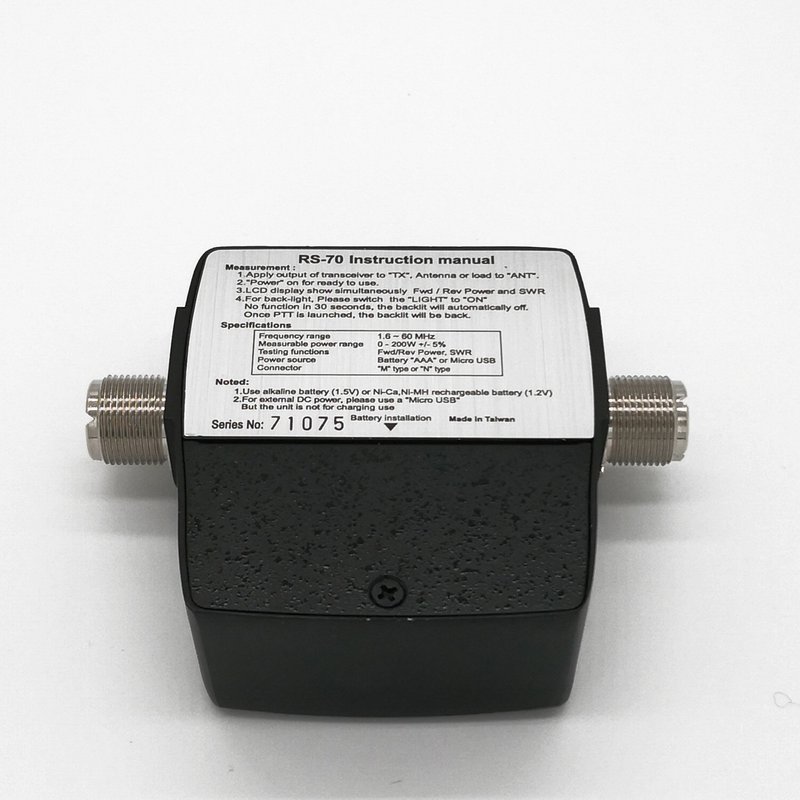

Battery installation:
1. Remove the black screw from the cover to open the rear panel.
2. Install 2 pcs "AAA" batteries.
3. Can be used with alkaline or Ni-Ca, Ni-MH rechargeable battery.
4. This unit has no built-in charging circuitry.
5. Be sure to correct polarity of battery.
6. Remove the battery if the unit won't be used in long period.

Packages includes:
1 x SWR/Power Meter(no batteries)
