ZOZOMOTORS Dual Electric Fan Relay Kit Radiator Electric Fan Thermostat Kit Temperature Sensor Switch 185 On 175 Off, Automotive 40 AMP Cooling Fan Relay Switch Kit 4 Pin, Dual Electric Fan Wiring Kit

Brand: ZOZOMOTORS Sold By: Everymarket
£58.16 In Stock
Ships from US, Arrives in 10-17 business days
Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
26
May2025
-
04
June2025
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
ZOZOMOTORS Dual Electric Fan Relay Kit Radiator Electric Fan Thermostat Kit Temperature Sensor Switch 185 On 175 Off, Automotive 40 AMP Cooling Fan Relay Switch Kit 4 Pin, Dual Electric Fan Wiring Kit

ZOZOMOTORS Dual Electric Fan Relay Kit Radiator...

£58.16

Product Details
  • Easy to follow wiring diagram simplify wiring your dual electric fans. RED to 12VDC Positive Battery Terminal, COFFEE to Fan Positive, BLACK to Ignition, GREY to Sending Unit per wiring diagram. Direct replacement part fits 10, 12, 14, and 16 inch cooling fans
  • Temperature switch turns on fan approximately at 185 Degrees and Off at 175 Degrees. The temp sensor has a 3/8 inch pipe thread, and a 1/2 inch adapter included
  • This electric cooling fan thermostat kit comes with everything you need, includes 40A relay, wiring harness, thermostat switch, 3/8 inch to 1/2 inch adapter, inline fuse holder, 2 20amp fuse, 1 spade connector for the temp sensor, 8 ring terminals, and 4 wire connectors
  • The thermostat supplied with this kit is OE style to mount in the cylinder head of the engine or any water jacket if needed. The thermostat MUST be grounded through the threads to the engine in order for it to work, and the engine MUST be grounded
  • If you intend to mount high-profile fans, you could crimp or solder bigger wires to it. The 14AWG wires (15 amps) are not bigger enough for high amps draw

  • Manufacturer: MAXCOOLING
  • Part Number: JDQ2DG

40A Dual fan relay kit with color-coded wires for easy installation (wiring diagram included in the package).
Direct replacement part, fits 10, 12, 14, and 16 inch fans.

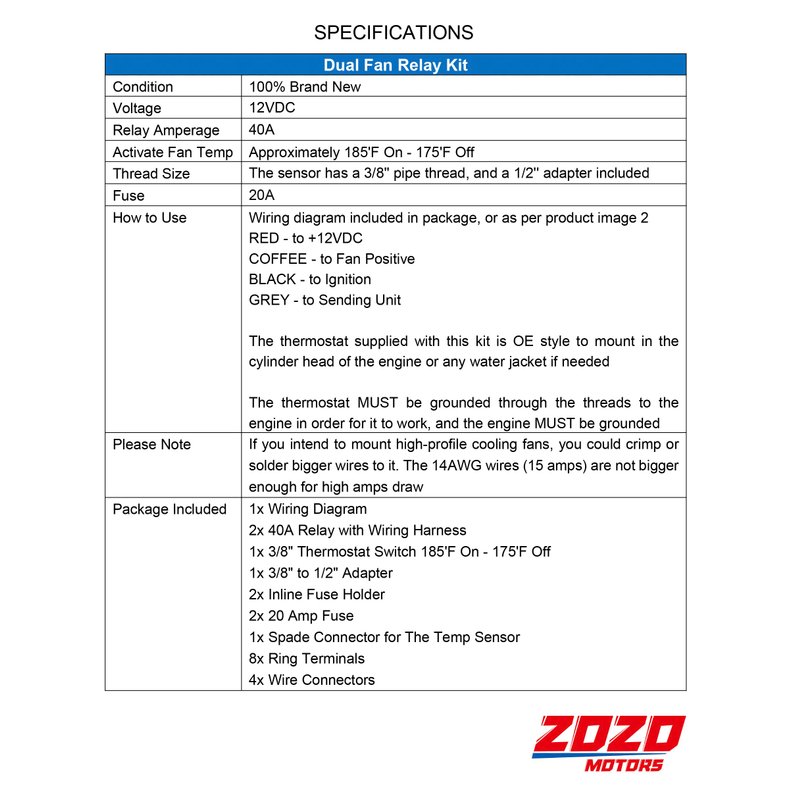

Specifications:
100% Brand New
Voltage: 12VDC
Approximately 185'F On - 175'F Off relay wiring kits
Thread Size: the temperature sensor has a 3/8'' pipe thread, and a 1/2'' adapter included

How to use:

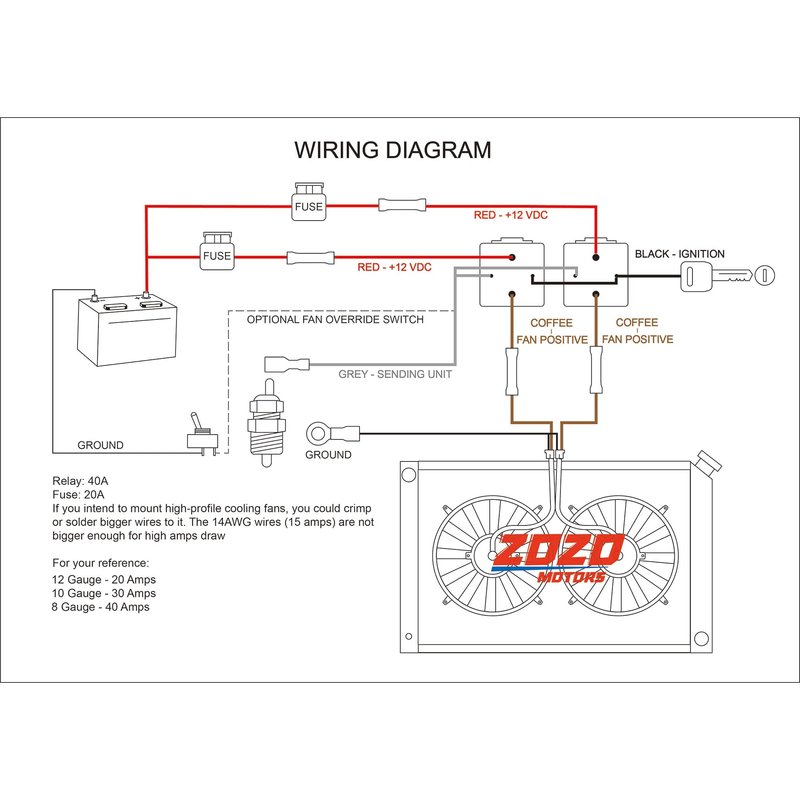

Connect the color-coded wires per the diagram (product image 2) and notes below:
RED - to +12VDC
COFFEE - to Fan Positive
BLACK - to Ignition
GREY - to Sending Unit

The thermostat supplied with this kit is OE style to mount in the cylinder head of the engine or any water jacket if needed.
Do not use thread tape on the sensor it may cause poor electrical contact or incorrect temperature readings.

Please note:
If you intend to mount high-profile cooling fans, you could crimp or solder bigger wires to it. The 14AWG wires (15 amps) are not bigger enough for high amps draw
12 Gauge - 20 Amps
10 Gauge - 30 Amps
8 Gauge - 40 Amps

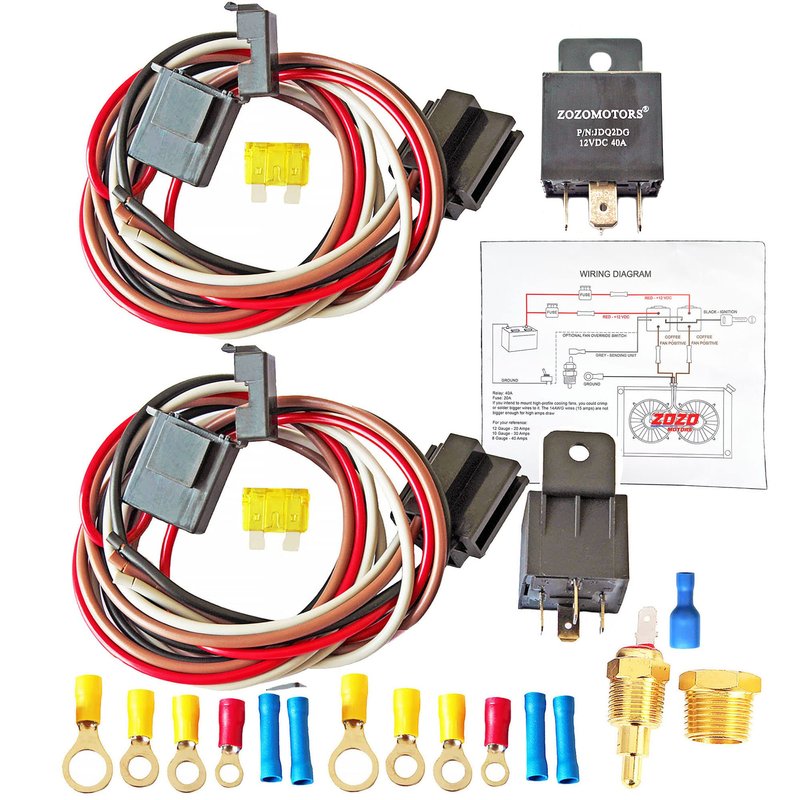

Package Included:
1x Wiring Diagram

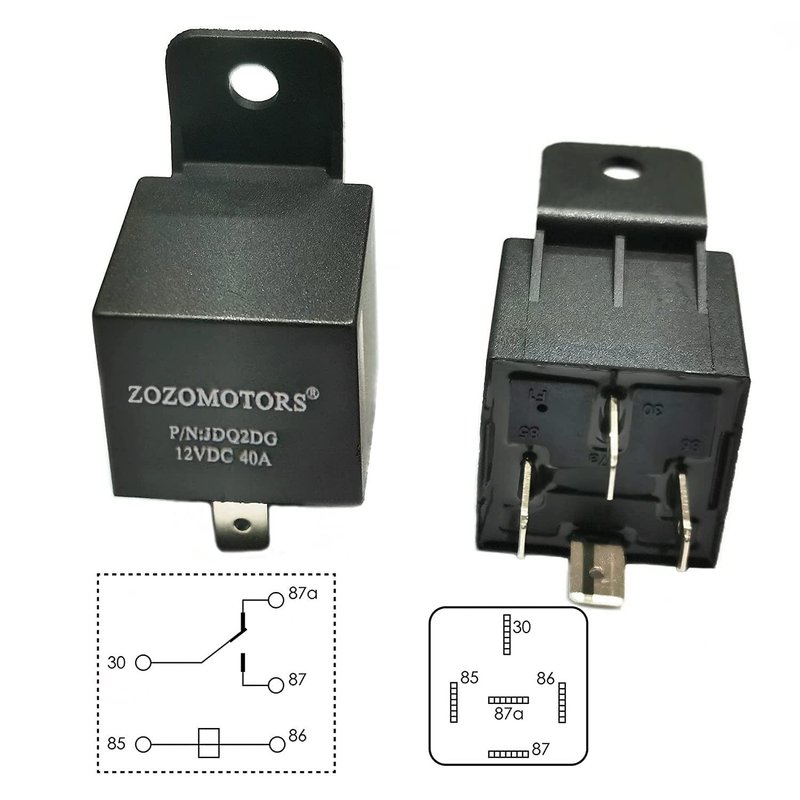

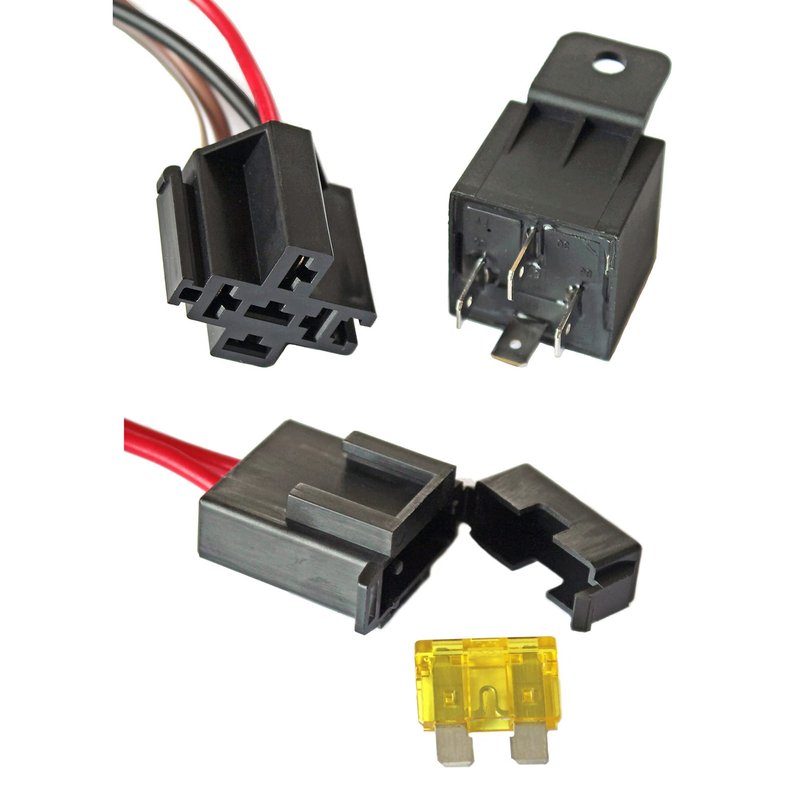

2x 40A Relay with Wiring Harness

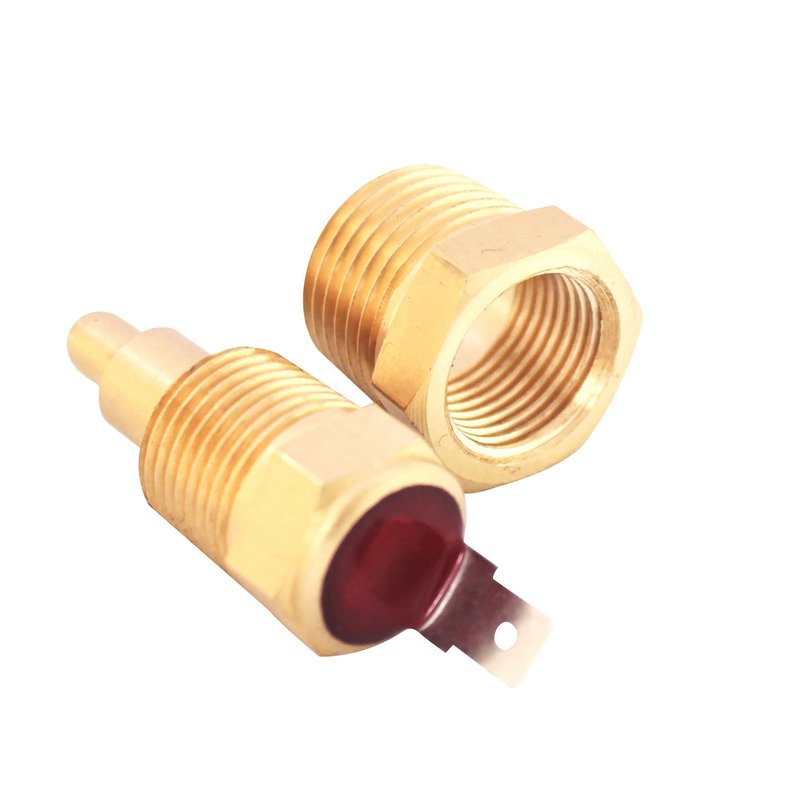

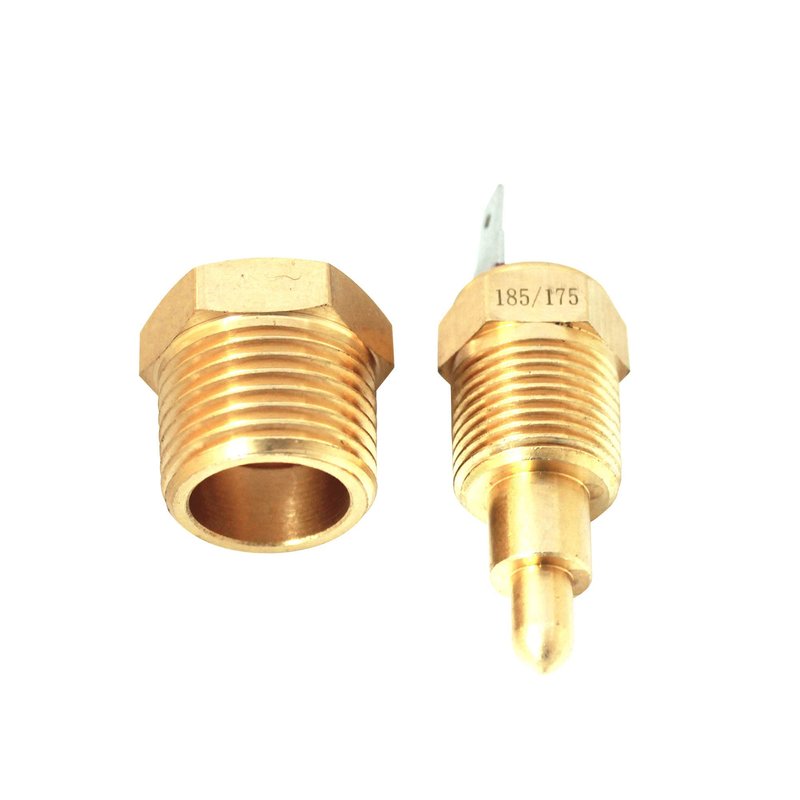

1x 185'F On - 175'F Off Temperature Switch
1x 3/8" Thread-In Probe
1x 3/8" to 1/2" Adapter
2x Inline Fuse Holder
2x 20 amp Fuse
8 Ring Terminals
4 Fan Pigtail Connectors
